| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 0.01 to 18.0 GHz |
|---|
| Frequency Min: | 0.01 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss: | 5.25 dB max |
|---|
| Digital Control: | 8 Bit TTL 0.25dB Minimum Attenuation Step |
|---|
| Operating Input Power: | +20dBm |
|---|
| Attenuation Flatness: | ±0.9dB @ 10dB Attenuation, ±1.5dB @ 20dB Attenuation, ±3.0dB @ 40dB Attenuation, ±5.0dB @ 60dB Attenuation |
|---|
| Attenuation Accuracy: | ±1.0dB @ 0dB to 30dB Attenuation, ±1.3dB @ 30dB to 50dB Attenuation, ±1.5dB @ 50dB to 60dB Attenuation |
|---|
| Monotonicity: | Guaranteed |
|---|
| Temperature Variation: | ±2.5dB -10 to 85 deg C typ ±3.5dB -40 to 95 deg C typ |
|---|
| Swiching Time: | 5 uSec max |
|---|
| Small Signal Bandwidth: | 100kHz typ (6dB with ±3dB sinewave) |
|---|
| Large Signal Bandwidth: | 50kHz typ (30dB with ±30dB sinewave) |
|---|
| Return Loss: | -12dB typ, -8.5dB max |
|---|
| Analog Control Option: | 0-6V Analog Voltage, 10dB/Volt |
|---|
| Power Supply: | +12V to +15V @ 2mA max (may be omitted) |
|---|
| Negative Supply is Optional: | 0 to -15V @ 2mA max (may be omitted) |
|---|
| Connectors: | Field Replaceable SMA(F) |
|---|
| DC Connector: | 15 Pin Micro-D Female Mating Connector (Male) Furnished |
|---|

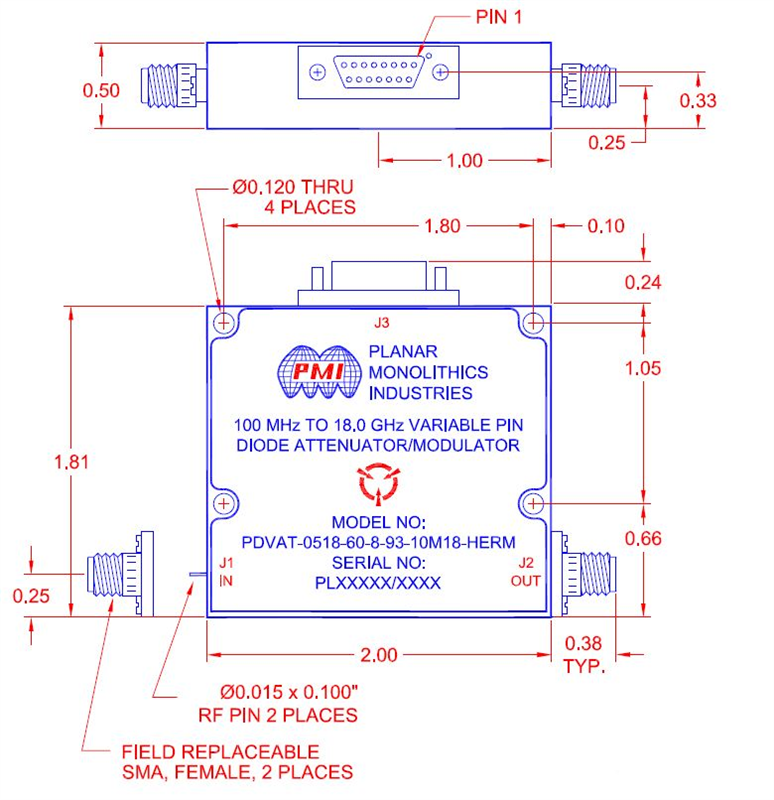

| Size: | 2.00 x 1.81 x 0.50 |
|---|
| Sealing: | Hermetic |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
