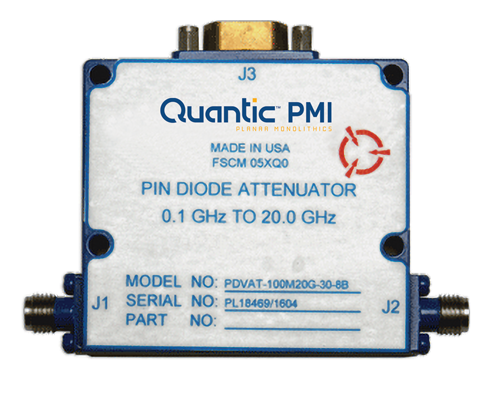

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.1 to 20 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Attenuation Range (dB): | 30 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.25 dB |
|---|
| Attenuation Flatness (dB): | ±1.5 dB @ 10 dB,
±2.5 dB @ 20 dB,
±4 dB @ 30 dB |
|---|
| Attenuation Accuracy (dB): | ±1 dB @ 0 to 10 dB,
±1 dB @ 10 to 20 dB,
±1 dB @ 20 to 30 dB |
|---|
| Insertion Loss (dB): | 4 dB Max |
|---|
| Operating Input Power: | 20 dBm |
|---|
| Monotonicity: | Guaranteed |
|---|
| Temperature Variation: | ±2.5 dB (-10 to +85 ºC),
±3.5 dB (-40 to +95 ºC) |
|---|
| Small Signal Bandwidth: | 150 kHz Typ (6 dB with ±3 dB sinewave) |
|---|
| Large Signal Bandwidth: | 75 kHz Typ (30 dB with ±30 dB sinewave) |
|---|
| Return Loss: | -12 dB Typ, -8.5 dB Max - measured -9.49 dB |
|---|
| Analog Control Option: | 0-6 V Analog Voltage, 10 dB/Volt |
|---|
| Power Supply: | +12 to +15 VDC @ 150 mA Max |
|---|
| Logic Input: | Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V |
|---|
| Digital Control: | 8 BIT TTL |
|---|
| DC Connector: | 15 Pin Micro-D Female (Mating Connector Supplied) |
|---|
| Connectors: | SMA Female - Field Replaceable |
|---|
| Size: | 2.0" x 1.8" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
