PE2-12-30M40G-5R5-18-12-292FF Active
Low Noise Amplifier
Buy Now
Additional Documents
- Product Feature
- Test Report - 5/19/20
- S-parameters
- 3D Model
- PL52000 - Unit Data
- PL52000-1 - Unit Data
- PL52001 - Unit Data
- PL52001-1 - Unit Data
- PL52002 - Unit Data
- PL52002-1 - Unit Data
- PL52003 - Unit Data
- PL52003-1 - Unit Data
- PL52004 - Unit Data
- PL52004-1 - Unit Data
- PL52005 - Unit Data
- PL52005-1 - Unit Data
- PL52006 - Unit Data
- PL52006-1 - Unit Data
- PL52007 - Unit Data
- PL52007-1 - Unit Data
- PL52008 - Unit Data
- PL52008-1 - Unit Data
- PL52009 - Unit Data
- PL52009-1 - Unit Data
- PL52039 - Unit Data
- PL52039-1 - Unit Data
- PL52040 - Unit Data
- PL52040-1 - Unit Data
- PL52041 - Unit Data
- PL52041-1 - Unit Data
- PL52042 - Unit Data
- PL52042-1 - Unit Data
- PL52043 - Unit Data
- PL52043-1 - Unit Data
- PL52044 - Unit Data
- PL52045 - Unit Data
- PL52046 - Unit Data
- PL52047 - Unit Data
- PL52048 - Unit Data
- PL52696 - Unit Data
- PL52697 - Unit Data
- PL52698 - Unit Data
- PL52699 - Unit Data
- PL52700 - Unit Data
- PL52701 - Unit Data
- PL52702 - Unit Data
- PL52720 - Unit Data
- PL52721 - Unit Data
- PL52722 - Unit Data

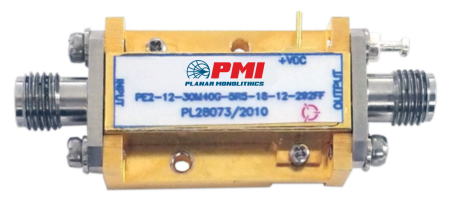

Quantic PMI Model PE2-12-30M40G-5R5-18-12-292FF is a 0.03 to 40 GHz low noise amplifier with a typical 12 dB gain, a noise figure of 9 to 11 dB, gain flatness of ±2.75 dB and an OP1dB of 17 dBm typical. This amplifier is supplied in our standard PE2 housing that can be used as a 2.92mm (F) connectorized unit or as a surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.03 to 40 |
| Frequency Min (GHz): | 0.03 |
| Frequency Max (GHz): | 40 |
| Gain (dB): | 12 dB Typ, 9.5 dB Min |
| Gain Flatness: | +/-3dB Max |
| Noise Figure (dB): | 9 dB Max (0.15 to 0.5 GHz), 7 dB Max (0.5 to 26 GHz), 11 dB Max (26 to 40 GHz) |
| OP1dB (dBm): | 17 dBm Typ 15.5 dBm Min |
| VSWR In/Out: | 2.3:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 230 mA Nom, 250 mA Max |
| Input Power: | 17 dBm Max |
| OP3dB: | 25 dBm @ 10 GHz Nom, 21 dBm @ 40 GHz Nom |
| Connectors: | 2.92mm Female - removable |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -20 ºC to +70 ºC Operating -65 ºC to +125 ºC Storage |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
