PE2-15-1R026R5-5R5-18-12-SFF Active
Low Noise Amplifier

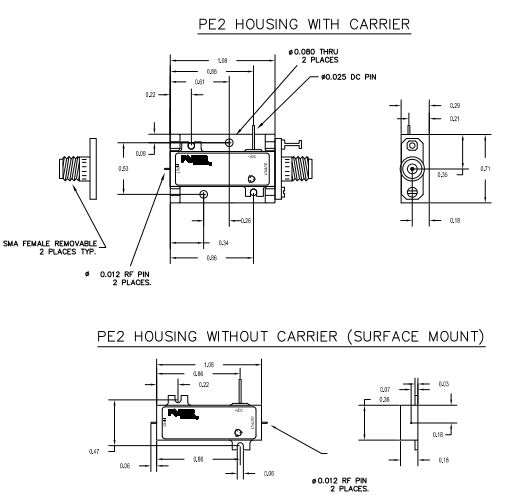

Quantic PMI Model PE2-15-1R026R5-5R5-18-12-SFF is a 1 to 26.5 GHz Low Noise Amplifier that provides 13 dB of gain while maintaining a maximum gain flatness of ±1.5 dB maximum over the operating frequency with a noise figure of 5.5 dB and offers an OP1dB of 18 dBm minimum. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 26.5 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 26.5 |
| Gain (dB): | 13 dB Typ |
| Gain Flatness: | ±1.5 dB Max |
| Gain Flatness (Measured): | ±1.5 dB Max - Measured ±0.8 dB |
| Noise Figure (dB): | 5.5 dB Typ |
| OP1dB (dBm): | 18 dBm Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 230 mA Max - Measured 264 mA |
| Connectors: | SMA Female - removable |
| Housing: | PE2 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
