PE2-25-200M18-3D5-25-SMP-HERM Preliminary
Low Noise Amplifier
Additional Documents

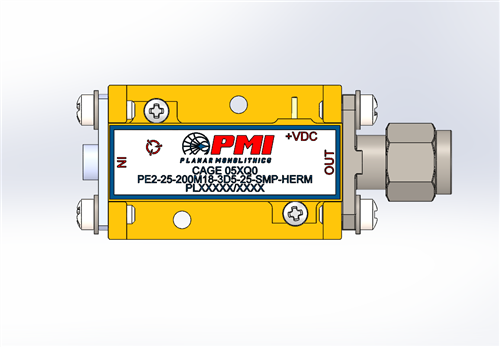

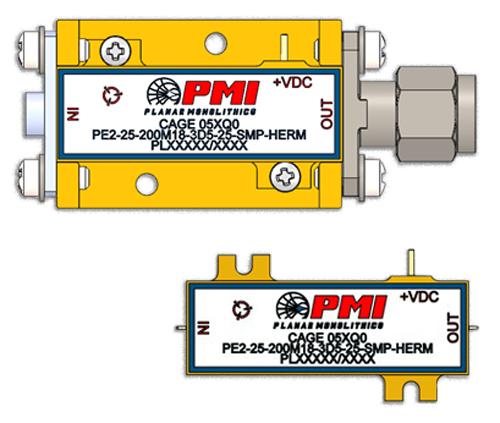

PMI Model PE2-25-200M18-3D5-25-SMP-HERM is a 0.2 to 18 GHz Low Noise Amplifier that provides >23 dB of gain while maintaining a maximum gain flatness of ±2 dB maximum over the operating frequency. The noise figure is 5 dB maximum from 0.5 to 18 GHz at an OP1dB of 23 dBm minimum. This model is supplied in our PE2 housing that can be used as a connectorized or surface mounted component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0.2 to 18 |
| Frequency Min (GHz): | 0.2 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 25 dB Typ 23 dB Min |
| Gain Flatness: | ±2 dB Max |
| Noise Figure (dB): | 9 dB Max (0.2 to 0.5 GHz) 5 dB Max (0.5 to 18 GHz) |
| OP1dB (dBm): | 25 dBm Typ 23 dBm Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 300 mA Max |
| Input Power: | 20 dBm Max |
| Sealing: | Hermetic |
| Connectors: | Input: SMP Male (Full Detent) Output: SMA Male |
| Size: | 1.08" x 0.71" x 0.29" |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
