PE2-30-2R04R0-1R5-21-12-SFF Active
Low Noise Amplifier

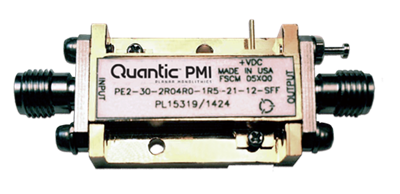

Quantic PMI Model PE2-30-2R04R0-1R5-21-12-SFF is a 2 to 4 GHz, Low Noise Amplifier that typically provides 30dB of gain while maintaining a Maximum gain flatness of ±1 dB over the operating frequency with a typical noise figure is 1.5 dB and offers an OP1dB of 21 dBm. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2 to 4 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 4 |
| Gain (dB): | 30 dB Typ |
| Gain Flatness (dB): | ±1 dB Max |
| Noise Figure (dB): | 1.5 dB Typ |
| OP1dB (dBm): | 21 dBm Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage Supply (VDC): | +12 to +15 VDC |
| DC Current Draw: | 300 mA Nom |
| Connectors: | SMA Female - removable |
| Size: | 1.8" x 0.71" x 0.29" |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -20 ºC to +70 ºC |
| Temperature (Non-Operating): | -65ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
