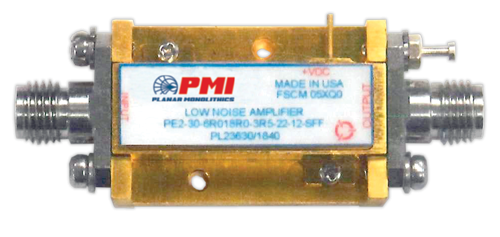

PE2-30-6R018R0-3R5-22-12-SFF Active
Low Noise Amplifier
Additional Documents
- Product Feature
- 3D Model
- Test Report - 10/2/18
- PL23630 - Unit Data
- PL23631 - Unit Data
- PL23631-1 - Unit Data
- PL26998 - Unit Data
- PL26999 - Unit Data
- PL27000 - Unit Data
- PL27002 - Unit Data
- PL29411 - Unit Data
- PL29411-1 - Unit Data
- PL29411-2 - Unit Data
- PL29412 - Unit Data
- PL29412-1 - Unit Data
- PL29412-2 - Unit Data
- PL29413 - Unit Data
- PL29413-1 - Unit Data
- PL29413-2 - Unit Data
- PL29414 - Unit Data
- PL29414-1 - Unit Data
- PL29414-2 - Unit Data
- PL29415 - Unit Data
- PL29415-1 - Unit Data
- PL29415-2 - Unit Data
- PL29416 - Unit Data
- PL29416-1 - Unit Data
- PL29416-2 - Unit Data
- PL32039 - Unit Data
- PL32040 - Unit Data
- PL32041 - Unit Data
- PL32042 - Unit Data
- PL39856 - Unit Data
- PL39857 - Unit Data
- PL39858 - Unit Data
- PL54924 - Unit Data
- PL54925 - Unit Data
- PL54926 - Unit Data
- PL54927 - Unit Data
- PL54928 - Unit Data
- PL54929 - Unit Data
- PL54951 - Unit Data
- PL54952 - Unit Data
PMI Model PE2-16-2R06R0-1R8-12-12-SFF is a low noise amplifier that operates over the frequency range of 6 to 18 GHz designed for military and industrial applications that offers a gain of 30 dB and a gain flatness of ±1.5 dB with a noise figure of 5 dB. The unit is supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 30 dB Typ |
| Gain Flatness: | ±1.5 dB Max |
| Noise Figure (dB): | 5 dB Max |
| OP1dB (dBm): | 18.5 dBm Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 325 mA Max |
| Connectors: | SMA Female - removable |
| Size: | 1.08" x 0.7" x 0.29" |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -55 °C to +125 °C |
