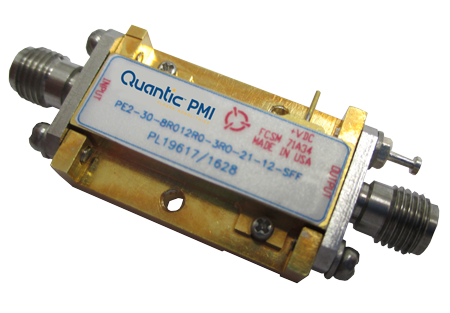

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 8 to 12 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 12 |
|---|
| Gain (dB): | 30 dB Typ |
|---|
| Gain (dB) - Measured: | 30 dB Typ - Measured 33.1 dB |
|---|
| Gain Flatness (dB): | ±0.75 dB Max |
|---|
| Gain Flatness (Measured): | ±0.75 dB Max - Measured ±0.24 dB |
|---|
| Noise Figure (dB): | 3 dB Typ |
|---|
| OP1dB (dBm): | 21 dBm Min |
|---|
| VSWR In/Out: | Input – 2.0:1 Max - Measured 1.27:1,
Output – 2.0:1 Max - Measured 1.26:1 |
|---|
| DC Voltage Supply (VDC): | +12 to +15 VDC |
|---|
| DC Current Draw: | 300 mA Max - Measured 295 mA |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.8" x 0.71" x 0.29" |
|---|
| Housing: | PE2 |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 ºC to +70 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
