PE2-30-8R018R0-3R5-22-12-SFF Active
Low Noise Amplifier
Buy Now
Additional Documents
- Product Feature
- Test Report - 7/3/18
- Test Report - 10/31/24
- 3D Model
- PL15896 - Unit Data
- PL15897 - Unit Data
- PL15898 - Unit Data
- PL22935 - Unit Data
- PL22935-1 - Unit Data
- PL22936 - Unit Data
- PL22936-1 - Unit Data
- PL22937 - Unit Data
- PL22937-1 - Unit Data
- PL30720 - Unit Data
- PL30721 - Unit Data
- PL32620 - Unit Data
- PL32621 - Unit Data
- PL33929 - Unit Data
- PL37173 - Unit Data
- PL37174 - Unit Data
- PL37175 - Unit Data
- PL37176 - Unit Data
- PL37177 - Unit Data
- PL49788 - Unit Data
- PL51781 - Unit Data
- PL51782 - Unit Data
- PL51783 - Unit Data
- PL52768 - Unit Data
- PL52769 - Unit Data
- PL52770 - Unit Data
- PL52771 - Unit Data
- PL52772 - Unit Data
- PL57867 - Unit Data
- PL57868 - Unit Data
- PL57869 - Unit Data
- PL57870 - Unit Data
- PL57871 - Unit Data
- PL57872 - Unit Data
- PL57873 - Unit Data
- PL57874 - Unit Data
- PL57875 - Unit Data

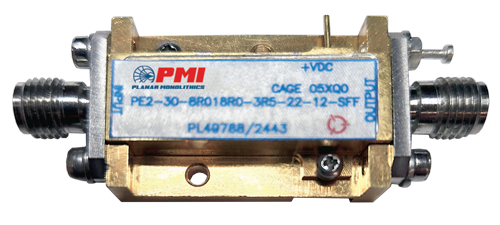

PMI Model PE2-30-8R018R0-3R5-22-12-SFF is an 8 to 18 GHz, Low Noise Amplifier with a typical gain of 30 dB while maintaining a maximum gain flatness of ±1.5 dB over the operating frequency. The typical noise figure is 4.5 dB and offers a minimum OP1dB of 18.5 dBm. The operating voltage is +12 to +15 VDC with a maximum current draw of 325 mA. It is supplied with removable SMA (F) connectors in our standard PE2 housing.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 8 to 18 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 30 dB Min (Room Temp) |
| Gain Flatness: | ±1.5 dB Max |
| Noise Figure (dB): | 4.5 dB Max (Room Temp) |
| OP1dB (dBm): | 18.5 dBm Min |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 325 mA Max |
| Connectors: | SMA Female - removable |
| Housing: | PE2 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -55 ºC to +125 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
