PE2-32-218-3R5-8-15-SFF Active

Broadband Low Noise Amplifier

PE2-32-218-3R5-8-15-SFF
Product Feature

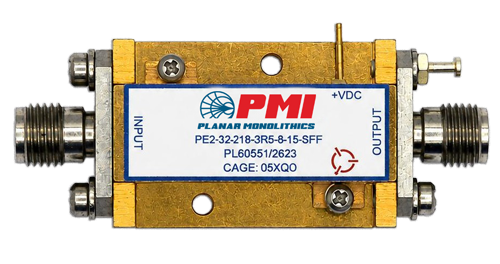

Quantic PMI Model PE2-32-218-3R5-8-15-SFF is a 2 to 18 GHz broadband low noise amplifier with a gain of 32 dB and a gain flatness of ±2.0 dB with a noise figure of 3.5 dB.  This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 32 dB Min
Gain Flatness: ±2.0 dB Max
Noise Figure (dB): 3.5 dB Max
OP1dB (dBm): 8 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 200 mA Max, 150 mA Typ
Connectors: SMA Female - removable
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -25 °C to +85 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
