PE2-34-1G18G-3R5-20-SFF-VVG-DD Active

Voltage Variable Gain Amplifier with Integrated Diode Detector

PE2-34-1G18G-3R5-20-SFF-VVG-DD
Product Feature

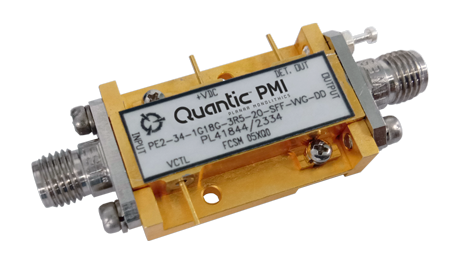

Quantic PMI Model PE2-34-1G18G-3R5-20-SFF-VVG-DD is a voltage variable gain amplifier with integrated diode detector operating over the frequency range of 1 to 18 GHz that provides a gain of 30 dB with a gain flatness of ±1.5 dB and a noise figure of  5 dB. Supplied in our standard PE2 housing that can be used as SMA connectorized or as a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Gain (dB): 30 dB Typ, 25 dB Min
Gain Control: 30 dB Typ, 25 dB Min
Gain Flatness (dB): ±1.5 dB Goal,  ±2 dB Max
Noise Figure (dB): 4.5 dB Typ, 5 dB Max
OP1dB (dBm): 10 dB Min
VSWR In/Out: 2:1 Max
Control Voltage: 0 to 2.5 VDC (+3 VDC Max, 0 V = Min Gain)
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current Draw: 280 mA Nom
Input Power: 18 dBm Max
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.29"
Housing: PE2
Weight: 15 g Max
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
