PE2-35-120-5R0-10-12-SFF Active

Low Noise Amplifier

PE2-35-120-5R0-10-12-SFF
Product Feature

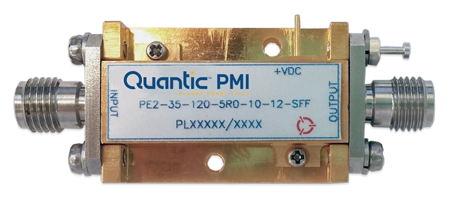

Quantic PMI Model PE2-35-120-5R0-10-12-SFF is a 1.0 to 20.0 GHz, low noise amplifier that typically provides 35 dB of gain while maintaining a maximum gain flatness of ±1.5 dB over the operating frequency. The noise figure is 3 dB typical and offers an OP1dB of 10 dBm minimum. The operating voltage is +12 to +15 VDC with a typical current draw of 300 mA. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 20
Frequency Min (GHz): 1
Frequency Max (GHz): 20
Gain (dB): 30 dB Min
Gain (Measured): 30 dB Min - Measured 41.4 dB
Gain Flatness: ±1.5 dB Max
Gain Flatness (Measured): ±1.5 dB Max - Measured ±0.88 dB
Noise Figure (dB): 3 dB Typ,
5 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.45:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 300 mA Typ
Impedance: 50 Ohm
Connectors: SMA Female - removable
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -54 ºC to +95 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
