PE2-618-25-4D5-27-SFF Active

Low Noise Amplifier

PE2-618-25-4D5-27-SFF
Product Feature

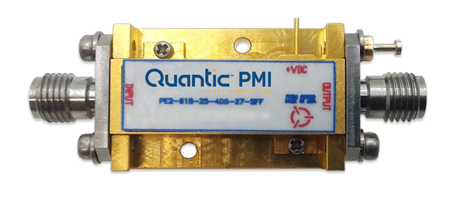

Quantic PMI Model PE2-618-25-4D5-27-SFF is a Low Noise Amplifier designed for military and industrial applications. This amplifier operates over the 6 to 18 GHz with a gain of 26 dB; noise figure of 4.5 dB; gain flatness of ±1 dB with an OP1dB of 24 dBm. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Gain (dB): 26 dB Min,
28 dB Max
Gain Flatness: ±1.0 dB Typ
Noise Figure (dB): 4.5 dB Max
OP1dB (dBm): 24 dB Min
VSWR In/Out: 2:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 400 mA Typ
Connectors: SMA Female - removable
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
