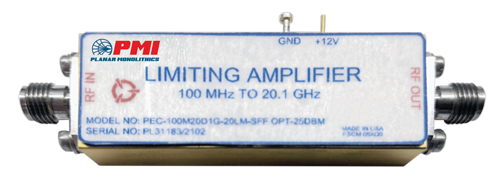

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.1 to 20.1 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 20.1 |
|---|
| Input Power: | -25 to 16 dBm
22 dBm Max (Survival) |
|---|
| Input VSWR: | 2.2:1 Max |
|---|
| Output VSWR: | 2.2:1 Max |
|---|
| Noise Figure (dB): | 6 dB Above 1 GHz,
9 dB Below 1 GHz |
|---|
| Limited RF Output: | 17 dBm Min, 24 dBm Max |
|---|
| Harmonics: | 2nd: -8 dBc Max,
3rd: -8 dBc Max |
|---|
| 2nd Harmonic Rejection: | -8 dBc Max |
|---|
| 3rd Harmonic Rejection: | -8 dBc Max |
|---|
| Saturated Output Power: | 17 dBm Min, 24 dBm Max |
|---|
| Saturated Power Flatness: | ±3 dBm Typ, ±3.5 dBm Max |
|---|
| Maximum Input Power: | 16 dBm |
|---|
| Survival Input Power: | 22 dBm |
|---|
| Output Power: | 17 dBm Min, 24 dBm Max |
|---|
| Output Power Flatness: | ±3 dBm Typ, ±3.5 dBm Max |
|---|
| DC Voltage Supply (VDC): | +12 VDC |
|---|
| DC Current Draw: | 500 mA Max (No RF Input Signal) |
|---|
| Finish: | Gold Plated |
|---|
| Output Power (PSAT): | 17 dBm Min, 24 dBm Max |
|---|
| VSWR: | 2.2:1 Max |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.91" x 0.70" x 0.36" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -54 °C to +85 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Condition B |
|---|
| Shock: | MIL-STD-202F, Method 213B Condition B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Condition B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Condition B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Condition A |
|---|
