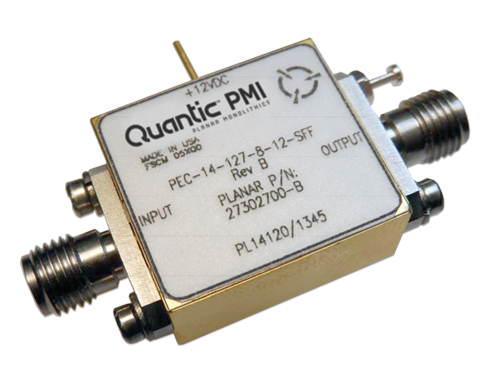

PEC-14-127-8-12-SFF Rev B Active
Low Noise Amplifier
Quantic PMI Model PEC-14-127-8-12-SFF Rev B is a wide band front end amplifier that operates over the frequency range of 1 to 26.5 GHz that provides gain of 13 dBm to 17 dBm with a maximum gain flatness of ±1.5 dB and a maximum noise figure is 5.5 dB from 1 to 20 GHz and 6 dB from 20 to 26.5 GHz. The housing measures 0.83" x 0.75" x 0.36" and is supplied with removable SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 26.5 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 26.5 |
| Gain (dB): | 13 to 17 dB |
| Gain (Measured): | 13 to 17 dB - Measured 14.38 dBm Min, 16.22 dBm Max |
| Gain Flatness: | ±1.5 dB Max |
| Gain Flatness (Measured): | ±1.5 dB Max - Measured ±0.92 dB |
| Noise Figure (dB): | 5.5 dB Max (1 to 20 GHz), 6 dB (20 to 26.5 GHz) |
| Noise Figure (Measured): | 5.5 dB Max (1 to 20 GHz) - Measured 4.96 dB, 6 dB Max (20 to 26.5 GHz) - Measured 5.69 dB |
| VSWR In/Out: | 2.2:1 Max - Measured 1.64:1 / 2.14:1 |
| DC Voltage (VDC): | +12 VDC |
| DC Current (mA): | 225 mA Max |
| Input Power: | 10 dBm CW Min |
| OIP3: | 3 dBm Min |
| Stability: | Unit to be unconditionally stable under all input and output loads |
| Connectors: | SMA Female - removable |
| Size: | 0.83" x 0.75" x 0.36" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -20 ºC to +75 ºC Operating, -30 ºC to +85 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
