PEC-20-200M6G-3R0-25-SFF Active
Low Noise Amplifier
Additional Documents
- Product Feature
- Test Report - 8/28/15
- PL18022 - Unit Data
- PL18023 - Unit Data
- PL18024 - Unit Data
- PL18025 - Unit Data
- PL18026 - Unit Data
- PL24114 - Unit Data
- PL24115 - Unit Data
- PL24116 - Unit Data
- PL24117 - Unit Data
- PL24118 - Unit Data
- PL24119 - Unit Data
- PL24120 - Unit Data
- PL24858 - Unit Data
- PL24859 - Unit Data
- PL24860 - Unit Data
- PL24861 - Unit Data
- PL24862 - Unit Data
- PL24863 - Unit Data
- PL25422 - Unit Data
- PL25423 - Unit Data
- PL25424 - Unit Data
- PL25425 - Unit Data
- PL25426 - Unit Data
- PL25427 - Unit Data
- PL25428 - Unit Data
- PL25429 - Unit Data
- PL25430 - Unit Data
- PL25431 - Unit Data
- PL25485 - Unit Data
- PL25486 - Unit Data
- PL25487 - Unit Data
- PL25488 - Unit Data
- PL25489 - Unit Data
- PL25490 - Unit Data
- PL25491 - Unit Data
- PL25492 - Unit Data
- PL25493 - Unit Data
- PL25494 - Unit Data
- PL38674 - Unit Data
- PL38675 - Unit Data
- PL38676 - Unit Data
- PL38678 - Unit Data
- PL38679 - Unit Data
- PL38680 - Unit Data
- PL38681 - Unit Data
- PL38677 - Unit Data
- PL40343 - Unit Data
- PL40344 - Unit Data
- PL40344-1 - Unit Data
- PL43410 - Unit Data
- PL43411 - Unit Data
- PL43412 - Unit Data
- PL43416 - Unit Data
- PL43419 - Unit Data
- PL43641 - Unit Data
- PL43413 - Unit Data
- PL43414 - Unit Data
- PL43417 - Unit Data
- PL43418 - Unit Data
- PL44266 - Unit Data
- PL44267 - Unit Data
- PL46030 - Unit Data
- PL47031 - Unit Data
- PL47032 - Unit Data
- PL47033 - Unit Data
- PL47034 - Unit Data
- PL47035 - Unit Data
- PL47054 - Unit Data
- PL47055 - Unit Data
- PL47056 - Unit Data
- PL47057 - Unit Data
- PL47058 - Unit Data
- PL47300 - Unit Data

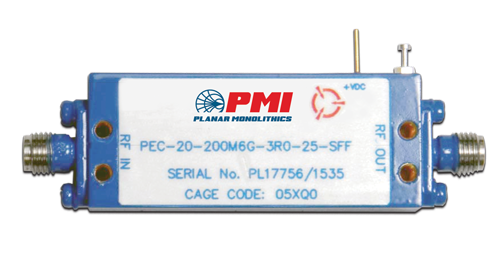

PMI Model PEC-20-200M6G-3R0-25-SFF is a 0.2 to 6 GHz Low Noise Amplifier that has a gain of 20 dB with ±1.5 dB flatness, OP1dB OF 25 dBm minimum and a noise figure of 3.5 dB. This model has SMA female connectors in a housing that measures 1.92" x 0.78" x 0.36".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.2 to 6 |
| Frequency Min (GHz): | 0.2 |
| Frequency Max (GHz): | 6 |
| Gain (dB): | 20 dB Nom |
| Gain Flatness: | ±1.5 dB Typ |
| Noise Figure (dB): | 6 dB Typ @ 0.2 GHz, 4.5 dB Typ @ 0.5 GHz, 3.5 dB Typ @ 2 GHz, 4 dB @ 6 GHz |
| OP1dB (dBm): | 25 dBm Min |
| VSWR In/Out: | 1.8:1 Goal |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 575 mA |
| Input Power: | 15 dB CW Max |
| Connectors: | SMA Female |
| Size: | 1.92" x 0.78" x 0.36" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -50 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL., STD-202F, Method 107D Cond A |
