PMI has has designed and manufactured various switch matrix assemblies by using PMI standard or custom Solid-State Switches and power dividers all assembled into a single integrated module.  An example of this work is described below.

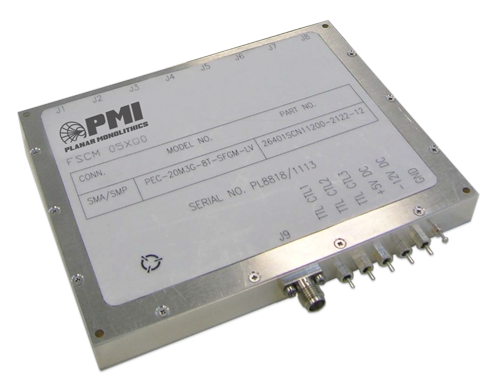

PMI has designed and produced the following Single Pole, Eight Throw Switch that operates over the 20MHz to 3.0Ghz Frequency Range.  A complete Product Feature along with electrical and mechanical specifications can be seen by clicking on the following image.

Product Specifications

General Parameters:
Item No.: 11
Status: Active
Product Description: PMI has has designed and manufactured various switch matrix assemblies by using PMI standard or custom Solid-State Switches and power dividers all assembled into a single integrated module. An example of this work is described below. PMI has designed and produced the following Single Pole, Eight Throw Switch that operates over the 20MHz to 3.0Ghz Frequency Range. A complete Product Feature along with electrical and mechanical specifications can be seen by clicking on the following image. Based upon various options, both a low band and high band assembly was produced. By utilizing the same switch, but with different power dividers PMI was able to offer a a low band switch matrix covering 20MHz to 500MHz and a high band switch matrix covering 1.0GHz to 3.0GHz. Other frequency ranges and configurations are available.
