PEC-2636-2G4D2G-711-SFF Preliminary
Limiting Amplifier
PMI Model PEC-2636-2G4D2G-711-SFF is a 2 to 4.2 GHz limiting amplifier featuring 26 to 36 dB gain, 7 to 11 dBm output power, and 5 dB noise figure. Housing size is 3.62" x 0.8" x 0.45" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 2 to 4.2 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 4.2 |
| Input Power: | -19 to 10 dBm |
| Gain (dB): | 26 to 36 dB |
| Gain Flatness (dB): | 4 dB Max |
| Noise Figure (dB): | 5 dB Max |
| Limited RF Output: | +7 to 11 dBm |
| Harmonics: | -13 dBc Max (@ 0 dBm Input) |
| Pulse Response Overshoot: | 0.5 dB Max |
| Pulse Response Settling Time: | 25 ns Max |
| Pulse Response Recovery Time: | 100 ns Max |
| DC Power Supply: | +12 VDC (± 5%) @ 200 mA Max |
| Finish: | Gold Plated |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |

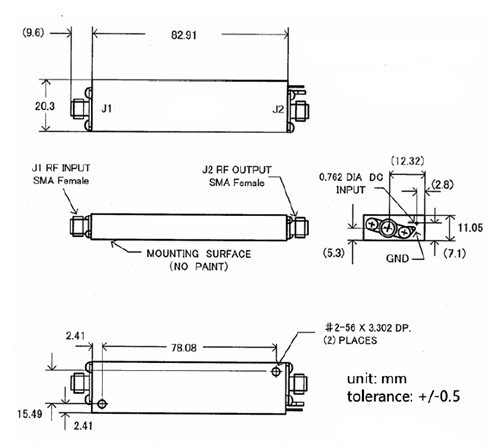

| Size: | 3.62" x 0.8" x 0.45" 82.92 mm x 20.3 mm x 11.05 mm |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 ˚C to +60 ˚C |
| Temperature (Non-Operating): | -30 ˚C to +60 ˚C |
| Humidity: | 95% RH at 45 ˚C |
| Shock: | 20 G at 11 ms Non-operating |
| Vibration: | 10mm Peak to Peak at 2-14 Hz 4.0 G at 14-50 Hz XYZ Axes, Operating |
