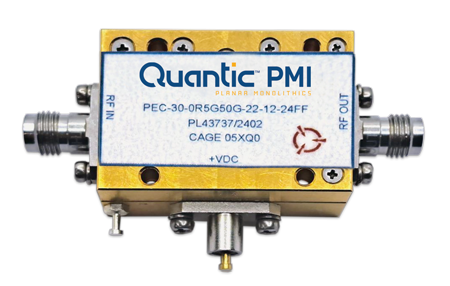

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.5 to 50 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 50 |
|---|
| Gain (dB): | 30 dB Typ |
|---|
| Gain Flatness: | ±2.5 dB goal,
±3 dB Max |
|---|
| Noise Figure (dB): | 9 dB Max |
|---|
| OP1dB (dBm): | 15 dBm Min (0.5 to 40 GHz),
8 dBm Typ (40 to 50 GHz) |
|---|
| Psat (dBm): | 18 dBm Min (0.5 to 40 GHz),
12 dBm Typ (40 to 50 GHz) |
|---|
| VSWR In/Out: | 2.3:1 goal, 2.5:1 Max |
|---|
| DC Voltage (VDC): | +12 to +15 VDC |
|---|
| DC Current (mA): | 600 mA Typ |
|---|
| Input Power: | +17 dBm Max |
|---|
| Connectors: | 2.4mm Female |
|---|
| Size: | 1.37" x 1.0" x 0.6" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating,
-65 ºC to +117 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
