PEC-30-10M20-SFF-ROHS Active

Low Noise Amplifier

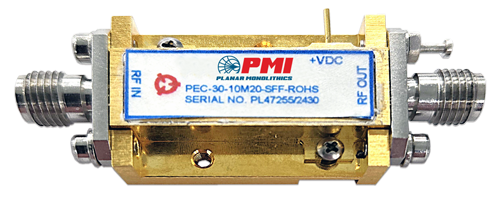

PEC-30-10M20-SFF-ROHS
Product Feature

PMI Model PEC-30-10M20-SFF-ROHS is an exceptionally low noise amplifier with a working frequency range of 0.01 to 20 GHz that offers a gain of 27.6 dB, a gain flatness of ±2 dB @ 18 GHz, a noise figure of 3 dB, an OP1dB of 13 dBm minimum, a Psat of 15 dBm typical, and a VSWR of 2.4:1 maximum. Supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" with SMA female connectors.  Dual use can be used as a surface mount or connectorized component. RoHS compliant.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 20
Frequency Min (GHz): 0.01
Frequency Max (GHz): 20
Gain (dB): 26 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)
Gain Flatness: ±2 dB Max (0.01 to 18 GHz),
±2.5 dB Typ (18 to 20 GHz),
±2.75 dB Max (18 to 20 GHz)
Noise Figure (dB): 13 dB Max (0.01 to 0.02 GHz),
7 dB Max (0.02 to 0.05 GHz),
4.5 dB Max (0.05 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
4 dB Max (18 to 20 GHz)
OP1dB (dBm): 14 dBm Typ, 13.5 dBm Min (0.01 to 18 GHz),
13 dBm Typ, 12 dBm Min (18 to 20 GHz)
Psat (dBm): 15 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz)
VSWR In/Out: 2.0:1 Max (0.01 to 18 GHz) IN,
2.2:1 Typ (18 to 20 GHz) IN,
2.1:1 Max (0.01 to 18 GHz) OUT,
2.4:1 Max (18 to 20 GHz) OUT
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 170 mA Max
Input Power: 20 dBm Max
Reverse Isolation: 36 dB Min (0.01 to 18 GHz),
35 dB Min (18 to 20 GHz)
OIP3: 20 dBm Min (0.01 to 20 GHz) @ 25 °C,
14 dBm Min (0.01 to 20 GHz) @ -40 to +85 °C
Connectors: SMA Female - removable
Size: PE2
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -40 °C to + 85 °C (Operating)
-40°C to +100°C (Storage)
Humidity: MIL-STD-202F, METHOD 103B COND B.
Shock: MIL-STD-202F, METHOD 213B COND B.
Altitude: MIL-STD-202F, METHOD 105C COND B.
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A.
