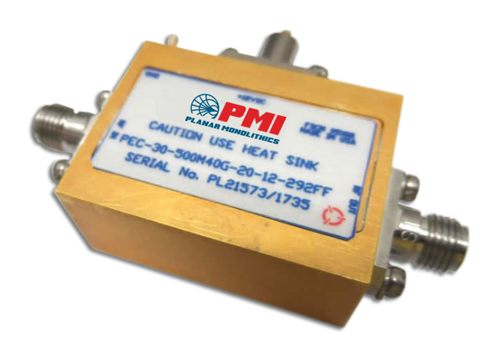

PEC-30-500M40G-20-12-292FF Active
Low Noise Amplifier
Buy Now
Additional Documents
- Product Feature
- Test Report - 9/1/2017
- 3D Model
- S-Parameters
- PL21672 - Unit Data
- PL22392 - Unit Data
- PL26645 - Unit Data
- PL26646 - Unit Data
- PL26647 - Unit Data
- PL26648 - Unit Data
- PL26649 - Unit Data
- PL26650 - Unit Data
- PL26651 - Unit Data
- PL29060 - Unit Data
- PL29475 - Unit Data
- PL29476 - Unit Data
- PL29477 - Unit Data
- PL29478 - Unit Data
- PL30642 - Unit Data
- PL30643 - Unit Data
- PL30644 - Unit Data
- PL30645 - Unit Data
- PL33851 - Unit Data
- PL33852 - Unit Data
- PL33853 - Unit Data
- PL33854 - Unit Data
- PL39534 - Unit Data
- PL39535 - Unit Data
- PL39536 - Unit Data
- PL39537 - Unit Data
- PL39538 - Unit Data
- PL41293 - Unit Data
- PL41294 - Unit Data
- PL41295 - Unit Data
- PL42514 - Unit Data
- PL42627 - Unit Data
- PL44273 - Unit Data
- PL44274 - Unit Data
- PL51458 - Unit Data
- PL51459 - Unit Data
- PL51460 - Unit Data
- PL51461 - Unit Data
- PL51462 - Unit Data
- PL51463 - Unit Data
- PL51464 - Unit Data
PMI Model PEC-30-500M40G-20-12-292FF is a 0.5 to 40 GHz Low Noise Amplifier with a typical gain of 30 dB with ±2.5 dB flatness; a noise figure of 5.5 dB, an OP1dB of 19 dBm, a Psat of 23 dBm, an input power handling of 17 dBm, and a VSWR of 2.0:1. This unit has 2.92mm female connectors and is 1.37" x 1.0" x 0.6".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.5 to 40 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 40 |
| Gain (dB): | 30 dB Typ |
| Gain (Measured): | 30 dB Typ - Measured 22.3 dB Min, 26.5 dB Max |
| Gain Flatness: | ±2.5 dB Typ |
| Gain Flatness (Measured): | ±2.5 dB Typ - Measured ±2.1 dB |
| Noise Figure (dB): | 5.5 dB Typ (Up to 26.5 GHz) |
| OP1dB (dBm): | 19 dBm (1 to 18 GHz) Typ, 17 dBm (18 to 40 GHz) Typ |
| Psat (dBm): | 23 dBm (1 to 18 GHz) Typ, 20 dBm (18 to 40 GHz) Typ |
| VSWR In/Out: | 2.0:1 / 2.5:1 Max - Measured 1.9:1/2.0:1 |
| DC Voltage (VDC): | +12 to +15 VDC |
| DC Current (mA): | 350 mA Nom - Measured 333 mA |
| Input Power: | 17 dBm CW Max |
| Connectors: | 2.92mm Female |
| Size: | 1.37" x 1.0" x 0.6" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +117 ºC Non-Operating |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
