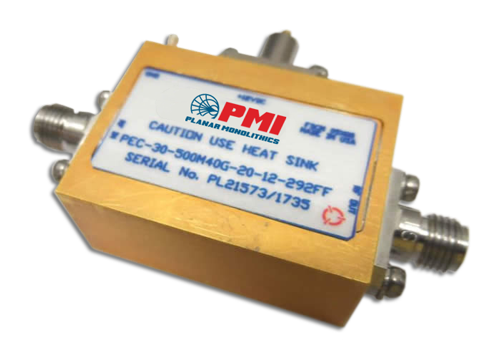

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.25 to 40 |
|---|
| Frequency Min (GHz): | 0.25 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Gain (dB): | 25 dB Nom |
|---|
| Gain (Measured): | 25 dB Typ - Measured 22.3 dB Min, 26.5 dB Max |
|---|
| Gain Flatness: | ±2 dB Max (+25°C to +85°C),
±3 dB Max (-55°C to +25°C) |
|---|
| Noise Figure (dB): | 5.5 dB Typ (Up to 26.5 GHz),
7 dB Max (up to 40 GHz) |
|---|
| OP1dB (dBm): | 18 dBm Min (0.25 to 10 GHz),
17 dBm Min (10 to 18 GHz),
15 dBm Min (18 to 40 GHz) |
|---|
| Psat (dBm): | 25 dBm Max (0.25 to 18 GHz),
22 dBm Max (18 to 40 GHz) |
|---|
| VSWR In/Out: | 2.0:1 / 2.5:1 Max |
|---|
| DC Voltage (VDC): | +12 to +15 VDC |
|---|
| DC Current (mA): | 400 mA Max (Iq) |
|---|
| Input Power: | 23 dBm (0.25 to 26 GHz)
20 dBm (26 to 40 GHz) Absolute Max |
|---|
| Connectors: | 2.92mm Female - removable |
|---|
| Size: | 1.37" x 1.0" x 0.6" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating,
-65 ºC to +117 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
