PEC-36-0R518G-4R5-27-15-SFF Active
Medium Power Low Noise Amplifier

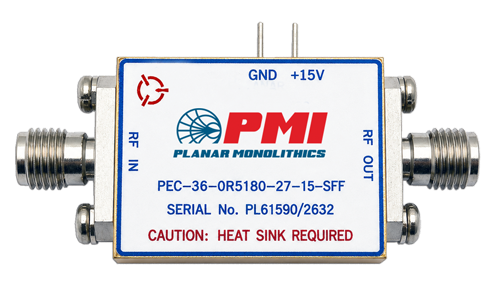

PMI Model PEC-36-0R518G-4R5-27-15-SFF is a 0.5 to 18 GHz, Medium Power, Low Noise Amplifier offering 38 dB gain and an OP1dB of 27 dBm with a low noise figure of 4.5 dB. Supplied in a housing measuring 1.0" x 0.63" x 0.25" with removable SMA female connectors and operates on a single +15 VDC supply.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 40 dB Typ, 38 dB Min |
| Psat: | 1 W Typ (30 dBm) |
| Input Power: | 20 dBm CW Max |
| VSWR: | 2.0:1 Max Input / 2.2:1 Max Ouput |
| Noise Figure: | 4.5 dB Typ, 5 dB Max |
| Gain Flatness: | ±2.5 dB Typ, ±3 dB Max |
| Current Supply: | 850 mA Nom |
| OP1dB: | 26.5 dBm Min, 27.5 dBm Typ |
| DC Supply Voltage: | +15 VDC |
| RF Connectors In/Out: | SMA Female - removable |
| Size (Excluding Connectors): | 1.0" x 0.63" x 0.25" |
| Finish: | Gold Plated |
| Weight: | ~10 g |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, METHOD 204D, COND. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
