PEC-36-2G18G-4R5-27-15-SFF Active
Medium Power Low Noise Amplifier
Buy Now
Additional Documents
- Product Feature
- STEP Model
- S-Parameters
- Test Report (5/13/2020)
- Test Report (2/23/2013)
- PL32584 - Unit Data
- PL32686 - Unit Data
- PL32687 - Unit Data
- PL32688 - Unit Data
- PL32689 - Unit Data
- PL32690 - Unit Data
- PL32764 - Unit Data
- PL32765 - Unit Data
- PL32766 - Unit Data
- PL32767 - Unit Data
- PL32768 - Unit Data
- PL32769 - Unit Data
- PL32770 - Unit Data
- PL32771 - Unit Data
- PL32772 - Unit Data
- PL32773 - Unit Data
- PL32774 - Unit Data
- PL32775 - Unit Data
- PL32776 - Unit Data
- PL32777 - Unit Data
- PL32778 - Unit Data
- PL32779 - Unit Data
- PL32780 - Unit Data
- PL32781 - Unit Data
- PL32782 - Unit Data
- PL32783 - Unit Data
- PL32784 - Unit Data
- PL32785 - Unit Data
- PL32786 - Unit Data
- PL32787 - Unit Data
- PL32788 - Unit Data
- PL35614 - Unit Data
- PL35615 - Unit Data
- PL35616 - Unit Data
- PL35617 - Unit Data
- PL35890 - Unit Data
- PL35891 - Unit Data
- PL35892 - Unit Data
- PL35893 - Unit Data
- PL35894 - Unit Data
- PL35895 - Unit Data
- PL35896 - Unit Data
- PL35897 - Unit Data
- PL35898 - Unit Data
- PL35899 - Unit Data
- PL35912 - Unit Data
- PL35948 - Unit Data
- PL35949 - Unit Data
- PL35950 - Unit Data
- PL35951 - Unit Data
- PL35952 - Unit Data
- PL35953 - Unit Data
- PL35954 - Unit Data
- PL35955 - Unit Data
- PL35960 - Unit Data
- PL35961 - Unit Data
- PL35964 - Unit Data
- PL36143 - Unit Data
- PL36144 - Unit Data
- PL36145 - Unit Data
- PL36146 - Unit Data
- PL36147 - Unit Data
- PL36148 - Unit Data
- PL36149 - Unit Data
- PL36157 - Unit Data
- PL37246 - Unit Data
- PL37247 - Unit Data
- PL37248 - Unit Data
- PL37249 - Unit Data
- PL41380 - Unit Data
- PL41381 - Unit Data
- PL41382 - Unit Data
- PL41383 - Unit Data
- PL41384 - Unit Data

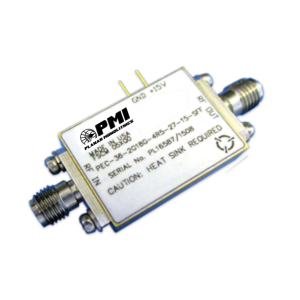

Quantic PMI Model PEC-36-2G18G-4R5-27-15-SFF is a 2 to 18 GHz, Medium Power, Low Noise Amplifier offering 36 dB gain and an OP1dB of 27 dBm with a low noise figure of 4.5 dB. This amplifier is supplied in a housing measuring 1.0" x 0.63" x 0.25" with SMA (F) connectors and operates on a single +15 VDC supply.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | 36 dB Typ |
| Psat: | 1W Typ (30 dBm) |
| Input Power: | 20 dBm CW Max |
| VSWR: | 2.0:1 Max |
| Noise Figure: | 4.5 dB Typ 5.0 dB Max |
| Gain Flatness: | ±1.5 dB Typ |
| Current Supply: | 850 mA Nom |
| OP1dB: | 26.5 dBm Min, 27.5 dBm Typ |
| DC Supply Voltage: | +15 VDC |
| RF Connectors In/Out: | SMA Female |
| Finish: | Gold Plated |
| Weight: | ~10 g |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, METHOD 204D, COND. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
