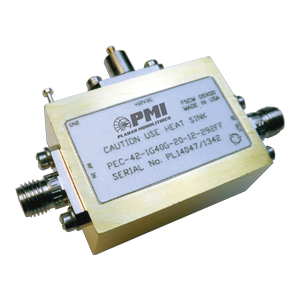

PEC-42-1G40G-20-12-292FF Active

Ultra-Wideband Low Noise Amplifier

PEC-42-1G40G-20-12-292FF
Product Feature

Quantic PMI Model No. PEC-42-1G40G-20-12-292FF is a 1.0 to 40 GHz, Ultra-Wideband Low Noise Amplifier that provides 42 dB of gain typically with a typical noise figure of 5.5 dB. The OP1dB is typically +19 dBm (1 to 18 GHz) and +17 dBm (18 to 40 GHz). The maximum input power rating is 17 dBm CW and the operating DC supply is 550 mA at +12 to +15 VDC. This unit is supplied in a package measuring 1.37" x 1.0" x 0.6" with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1to 40
Frequency Min (GHz): 1
Frequency Max (GHz): 40
Gain (dB): 42 dB Typ
Gain (Measured): 42 dB Typ - Measured 40.08 dB
Gain Flatness: ±2.5 dB Typ
Gain Flatness (Measured): ±2.5 dB Typ - Measured ±2.633 dB
Noise Figure (dB): 5.5 dB Typ (Up to 26.5 GHz)
OP1dB (dBm): 19 dBm (1 to 18 GHz) Typ,
17 dBm (18to 40 GHz) Typ
VSWR In/Out: 2.0:1 / 2.5:1 Max - Measured 1.85:1 / 2.32:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 550 mA Typ
Input Power: 17 dBm CW
Connectors: 2.92mm Female
Size: 1.37" x 1.0" x 0.6"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating
-65 ºC to +117 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
