PEC-43-9G9D6G-15-SFF-HERM Preliminary
Low Noise Amplifier

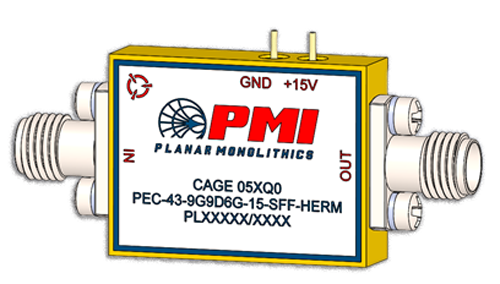

PMI Model PEC-43-9G9D6G-15-SFF-HERM is a 9 to 9.6 GHz RF amplifier featuring 43 dB gain with a gain flatness of ±1.5 dB and a maximum 1.8 dB noise figure. Hermetically sealed package measures 0.75" x 1.0" x 0.25" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 9 to 9.6 |
| Frequency Min (GHz): | 9 |
| Frequency Max (GHz): | 9.6 |
| Gain (dB): | 43 dB Min @ 25 ˚C |
| Gain Flatness (dB): | ±1.5 dB Max |
| Noise Figure (dB): | 1.4 dB Max @ 25 ˚C, 1.8 dB Max |
| VSWR In/Out: | 1.5:1 Max @ 25 ˚C |
| DC Supply: | +15 VDC, 550 mA Max @ 25 ˚C |
| Input Power: | 20 dBm Max |
| Sealing: | Hermetic |
| Input P1dB: | -20 dBm Min @ 25 ˚C |
| Recovery Time: | 1.5 µs Max |
| Connectors: | SMA Female - removable |
| Size: | 0.75" x 1.0" x 0.25" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +55 ˚C +71 ˚C for 30 minutes |
| Temperature (Non-Operating): | -57 ˚C to +85 ˚C |
| Humidity: | MIL-STD-810C, Method 504.1 Procedure 1 |
| Shock: | MIL-STD-810C, Method 516.2, Procedure 1 |
| Vibration: | MIL-STD-810C, Method 514.2, Category b.1, Procedure 1, Part 1 |
| Altitude: | MIL-STD-810C, Method 504.1, Procedure 1, Category 4 |
| Altitude (Operating): | 35, 000 ft. |
| Altitude (Storage): | 40, 000 ft. |
| Mold Resistance: | MIL-STD-810C, Method 508.2 |
| Salt Atmosphere: | MIL-STD-810C, Method 509.1, Procedure 1 |
