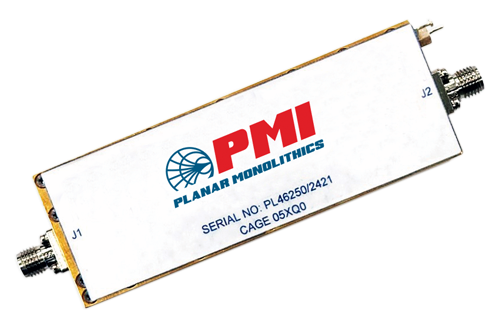

PEC-54-8G18G-14DBM-SFF Active
Limiting Amplifier
PMI Model PEC-54-8G18G-14DBM-SFF is a limiting amplifier with an operating frequency range of 8 to 18 GHz that offers a gain range of 50 to 58 dB with a gain flatness of ±3.5 dB; a noise figure of 7.5 dB; saturated output power 16 dBm; harmonics at 5 dBm Input -13.3 dBc and VSWR of 1.4:1. Housing size measures 3.25" x 1.15" x 0.66" and has SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 8 to 18 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 18 |
| Input Power: | 18 dBm Max |
| Input VSWR: | 2 Max |
| Gain (dB): | 50 to 58 dB Max |
| Gain Flatness (dB): | ±3.5 dB Max |
| Noise Figure (dB): | 7.5 dB Max |
| Harmonics: | -10 dBc Max @ 5 dBm Input |
| Saturated Output Power: | 12 to 16 dBm |
| Output Power: | 12 to 16 dBm |
| DC Voltage Supply (VDC): | +12 VDC Max |
| DC Current Draw: | 650 mA Max |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 3.25" x 1.15" x 0.66" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 °C to +70 °C Operating -30 °C to + 70 °C Storage |
| Humidity: | 95% @ (+45 °C) RH |
| Shock: | 20G @ 11 MS |
| Vibration: | 5 mm Peak-to-Peak @ 2 to 5 Hz 1.5 mm Peak-to-Peak @ 5 to 10 Hz 3 mm Peak-to-Peak @ 10 to 25 Hz |
