PFA-DC12D4G-30DB-2W-NMF Preliminary
Fixed Attenuator
PMI Model PFA-DC12D4G-30DB-2W-NMF is a DC to 12.4 GHz fixed attenuator featuring 30 dB attenuation, 2 W CW power handling, and 300 W peak power handling. Package size is ~1.8" x Ø0.65" with type N male/female connector.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0 to 12.4 |
| Frequency Min (GHz): | 0 |
| Frequency Max (GHz): | 12.4 |
| Attenuation Value (dB): | 30 |
| VSWR: | 1.20:1 Max @ DC to 6 GHz 1.25:1 Max @ 6 to 12.4 GHz |
| Input Power: | 2 W CW, 300 W Peak |
| Deviation (±dB): | 0.5 @ DC to 6 GHz, 1 @ 6 to 12.4 GHz |
| Connectors: | N Male / Female |

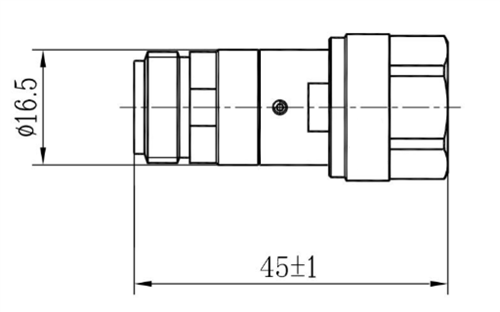

| Size: | 45 ± 1 mm x Ø16.5 mm ~1.8" x Ø0.65" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Shock: | MIL-STD-202 Method 213 Cond. I |
| Vibration: | MIL-STD-202 Method 204 Cond. D |
| Thermal Shock: | MIL-STD-202 Method 107 Cond. B |
| Salt Atmosphere: | MIL-STD-202 Method 101 Cond. B |
| Resistance to Solvents: | MIL-STD-202 Method 215 |
| Moisture Resistance: | MIL-STD-202 Method 106 |
