PFA-DC40G-20-2W-292
Preliminary
Fixed Attenuator
Quantic PMI Model PFA-DC40G-20-2W-292 is a 2 W fixed attenuator operating over the DC to 40 GHz frequency range and provides 20 ± 0.6 dB attenuation. Package size is 0.677" x 0.315" Hex with 2.92mm connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | DC to 40 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Attenuation Value (dB): | 20 dB |
|---|
| Attenuation Accuracy (dB): | ±0.6 dB |
|---|
| Impedance (Ohms): | 50 |
|---|
| VSWR: | 1.3:1 Max |
|---|
| Input Power: | 2 W Max |
|---|
| Connectors: | 2.92mm Male / Female |
|---|

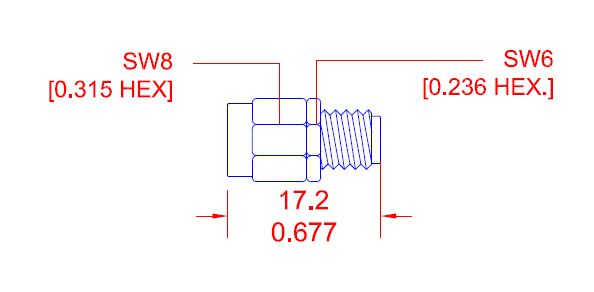

| Size: | 0.677" x 0.315" Hex |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -20 ºC to +85 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
