PIM-333M368M-28-816-5V-SFF Active
Variable Frequency Comb Generator

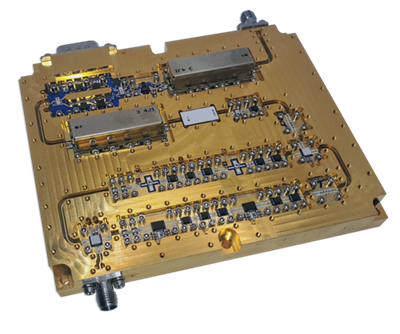

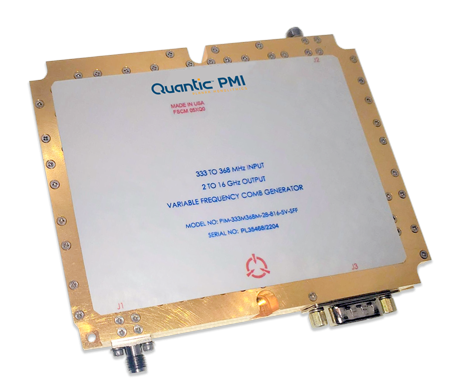

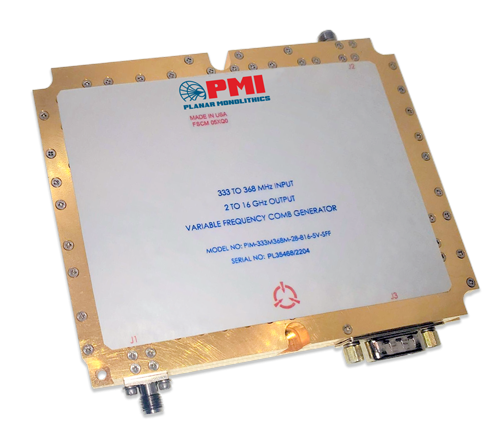

PMI Model PIM-333M368M-28-816-5V-SFF is a Variable Frequency Comb Generator with an input frequency from 333 to 368 MHz and 2 to 16 GHz output with a maximum VSWR of 1.8:1, an input tone range power level of -17 dBm ± 3 dB, and an input tone spurious rejection of -55 dBc. This unit's housing is 4.5" x 3.5" x 0.75" and has SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model PIM-333M368M-28-816-5V-SFF is a Variable Frequency Comb Generator with an input frequency from 333 to 368 MHz and 2 to 16 GHz output with a maximum VSWR of 1.8:1, an input tone range power level of -17 dBm ± 3 dB, and an input tone spurious rejection of -55 dBc. This unit's housing is 4.5" x 3.5" x 0.75" and has SMA female connectors. |
| Item No.: | 100 |
| Export Classification (ECCN): | EAR99 |
