PIQ-1-SMT-EVAL Active
Evaluation Board for PIQ-1-SMT
Additional Documents

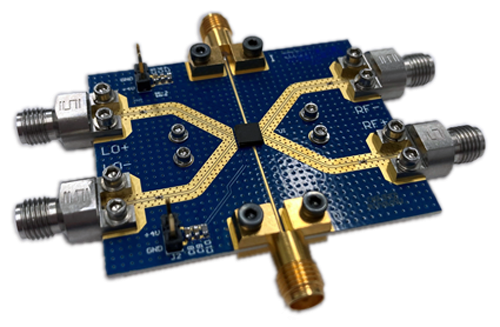

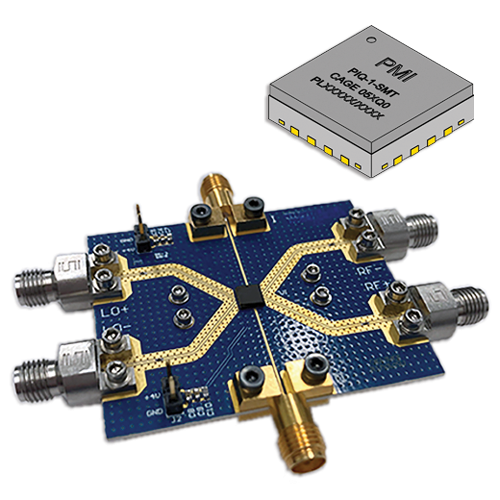

PMI Model PIQ-1-SMT-EVAL is an evaluation board for PIQ-1-SMT that is an integrated broadband IQ vector modulator with fully differential inputs and outputs (LO and RF) ports and single-ended on the baseband (I and Q) inputs. An on-chip broadband quadrature generator network allows the PIQ-1-SMT to achieve multi-octave frequency coverage. The PIQ-1-SMT operates with a single positive VCC = 4 V @ 250 mA supply and is supplied in a QFN package. The evaluation board features four female 2.92 mm board-edge-mount connectors (LO+, LO−, RF+, RF−) and two SMA edge-mount connectors (I, Q). Model has two 2-position header connectors for supplying power (4 V) and ground to the IQ vector modulator chip.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 10 dB Max |
| Phase Shift Range: | 360° |
| LO Bandwidth: | 0.1 to 40 GHz |
| RF Bandwidth: | 0.1 to 40 GHz |
| IQ Bandwidth: | DC to 10 GHz (0 to 3.3 VDC) |
| LO Power: | 10 dBm Max |
| VCC: | +4 VDC ± 5% |
| Current: | 250 mA Typ |
| DC Power Dissipation (W): | 1.2 W Max |
| RF Connectors: | LO & RF: 2.92mm Female I/Q: SMA Female |
| Size: | Board: 2.0" x 1.6" x 0.031" Heat Sink: 1.2" x 0.8" x 0.25" Mounting Holes: 4.X4-40" UNC-2B |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C (Operating) |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
