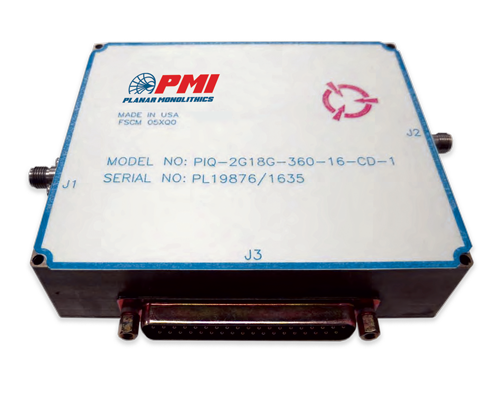

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 17 dB Typ, 18 dB Max |
|---|
| Phase Shift Range: | 360° |
|---|
| Dynamic Range: | 16 dB |
|---|
| VSWR: | 2.2:1 Max (50 Ohm System) |
|---|
| RF Input Power (dBm): | 10 dBm CW, 1 W Max |
|---|
| Phase vs Frequency: | ±20° Typ - Measured, ±9.66° @ 0 dB Attenuation,
±12.35° @ 8 dB Attenuation,
±18.23° @ 16 dB Attenuation |
|---|
| Control Slopes: | Linear |
|---|
| Switching Speed: | 500 ns Max, Measured 416 ns |
|---|
| Power Supply: | ±12 to ±15 VDC @ 100 mA Max |
|---|
| Attenuation vs Frequency: | ±3.5 dB Typ - Measured, ±1.19 dB @ 0 dB Attenuation,
±1.41 dB @ 8 dB Attenuation,
±2.91 dB @ 16 dB Attenuation |
|---|
| Temperature Coefficient: | ±0.035 dB / ºC & ±0.17 Deg / ºC |
|---|
| Control Logic: | 2x12 Bit (I & Q), TTL Compatible |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Power/ Logic Connectors: | DC-37P, Sub Miniature D Multi-Pin |
|---|
| RF Connectors: | SMA Female (Input & Output) |
|---|
| Size: | 4.25" x 3.5" x 1.0" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -10 ºC to +60 ºC (Operating),
-65 ºC to +125 ºC (Non-Operating) |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond A |
|---|
