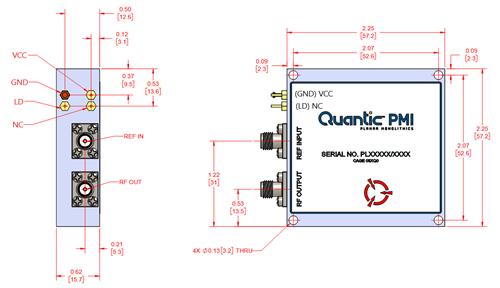

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 11.7 |
|---|
| Load VSWR: | 1.5:1 Max |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -80 dBc Max |
|---|
| Phase Noise: | -89 dBc/Hz Max @ 100 Hz
-98 dBc/Hz Max @ 1 kHz
-109 dBc/Hz Max @ 10 kHz
-112 dBc/Hz Max @ 100 kHz
-122 dBc/Hz Max @ 1 MHz
-146 dBc/Hz Max @ 10 MHz |
|---|
| Harmonics: | -30 dBc Max |
|---|
| Sub Harmonics: | -70 dBc Max |
|---|
| External Reference: | 100 MHz Sine Wave |
|---|
| Input Level: | 5 dBm Min |
|---|
| Look Detect: | TTL High - Lock |
|---|
| DC Supply: | +12 to +15 VDC @ 300 mA Max |
|---|
| Reference Phase Noise: | -135 dBc/Hz Max @ 100 Hz
-155 dBc/Hz Max @ 1000 Hz
-160 dBc/Hz Max @ 10 kHz |
|---|
| RF Connector: | SMA Female |
|---|
| Lock Time: | 2 s Max |
|---|
| Frequency Pushing: | 1.2 MHz/V Max |
|---|
| Frequency Pulling: | 1 MHz Max |
|---|
| Loop Bandwidth: | 200~300 kHz |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ℃ to +85 ℃ |
|---|
| Non-Operating Temperature: | -50 ℃ to +100 ℃ |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
