PLDRO-12522R24M-13DBM-SFF-ROHS Active
Phase Locked Oscillator
Additional Documents
- Product Feature
- Test Report - 7/20/18
- 3D Model
- Phase Noise Typical Data
- PL30784 - Unit Data
- PL30785 - Unit Data
- PL30786 - Unit Data
- PL30787 - Unit Data
- PL30788 - Unit Data
- PL36194 - Unit Data
- PL36195 - Unit Data
- PL36196 - Unit Data
- PL36197 - Unit Data
- PL36198 - Unit Data
- PL36199 - Unit Data
- PL36199-1 - Unit Data
- PL39561 - Unit Data
- PL39562 - Unit Data
- PL41452 - Unit Data
- PL41453 - Unit Data
- PL41454 - Unit Data
- PL41455 - Unit Data
- PL41456 - Unit Data
- PL41457 - Unit Data
- PL41458 - Unit Data
- PL41459 - Unit Data
- PL44307 - Unit Data
- PL44308 - Unit Data
- PL44309 - Unit Data
- PL44310 - Unit Data
- PL44311 - Unit Data
- PL44688 - Unit Data
- PL44689 - Unit Data
- PL44690 - Unit Data
- PL44691 - Unit Data
- PL44692 - Unit Data
- PL44693 - Unit Data
- PL44694 - Unit Data
- PL44695 - Unit Data
- PL44696 - Unit Data
- PL44697 - Unit Data
- PL44698 - Unit Data
- PL44699 - Unit Data
- PL44700 - Unit Data
- PL44701 - Unit Data
- PL44702 - Unit Data
- PL44703 - Unit Data
- PL44704 - Unit Data
- PL44705 - Unit Data
- PL44706 - Unit Data
- PL44707 - Unit Data
- PL41460 - Unit Data
- PL41461 - Unit Data
- PL46811 - Unit Data
- PL46812 - Unit Data
- PL46813 - Unit Data
- PL46814 - Unit Data
- PL46815 - Unit Data
- PL46816 - Unit Data
- PL46817 - Unit Data
- PL46818 - Unit Data
- PL46819 - Unit Data
- PL46820 - Unit Data
- PL46821 - Unit Data
- PL46822 - Unit Data
- PL46823 - Unit Data
- PL47823 - Unit Data
- PL47824 - Unit Data
- PL47825 - Unit Data
- PL47826 - Unit Data
- PL47827 - Unit Data
- PL47828 - Unit Data
- PL47829 - Unit Data
- PL47830 - Unit Data
- PL47831 - Unit Data
- PL47832 - Unit Data
- PL47833 - Unit Data
- PL47834 - Unit Data
- PL47835 - Unit Data
- PL47836 - Unit Data
- PL47837 - Unit Data
- PL47838 - Unit Data
- PL47839 - Unit Data
- PL47840 - Unit Data
- PL47841 - Unit Data
- PL47842 - Unit Data

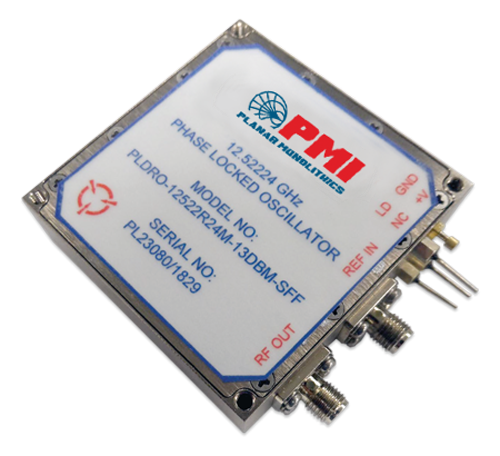

PMI Model PLDRO-12522R24M-13DBM-SFF-ROHS is a Phase Locked Microwave Oscillator that provides a 13 dBm minimum output at 12.52224 GHz with an external reference of 130.44 MHz. Other specifications include spurious -70 dBc maximum in band; harmonics -20 dBc maximum; reference input power is 0 ± 3 dBm; reference phase noise (SSB) of -158 dBc/Hz Min @ 100 kHz; and phase noise (SSB) of -130 dBc/Hz Min @ 1 MHz. Housing size is 2.25" x 2.25" x 0.62" excluding connectors and has SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Output Frequency - fo (GHz): | 12.52224 |
| Output Power (dBm): | 13 dBm Min |
| Spurious: | -70 dBc Max in band |
| Harmonics: | -20 dBc Max |
| External Reference: | 130.44 MHz |
| Reference Input Power: | 0 ± 3 dBm |
| Reference Phase Noise (SSB): | -122 dBc/Hz Min @ 100 Hz -139 dBc/Hz Min @ 1 kHz -153 dBc/Hz Min @ 10 kHz -158 dBc/Hz Min @ 100 kHz |
| Phase Noise (SSB): | -67 dBc/Hz Min @ 100 Hz -96 dBc/Hz Min @ 1 kHz -110 dBc/Hz Min @ 10 kHz -115 dBc/Hz Min @ 100 kHz -130 dBc/Hz Min @ 1 MHz |
| Look Detect: | TTL High in Lock |
| DC Power: | +12 to +15 VDC DC @ 350 mA Max |
| Connectors: | RF: SMA Female Power/Phase Lock: Solder Pins |
| Size: | 2.25" x 2.25" x 0.62" Excluding Connectors |
| Finish: | Chemically Coated IAW MIL-DTL-5541 Type 2, Class 3 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +85 °C |
