PLDRO-18D6G-25M-EXT-ROHS Active
Phase Lock Oscillator (PLDRO)

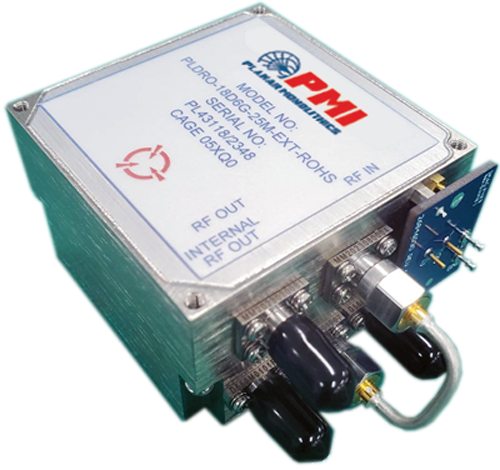

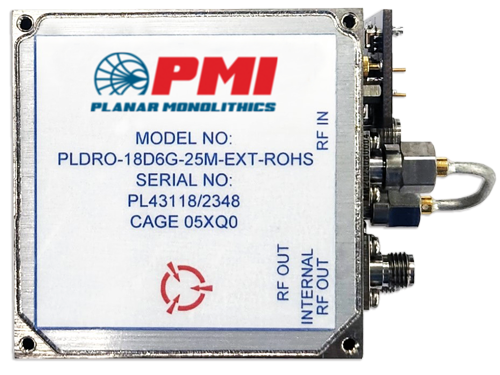

PMI Model PLDRO-18D6G-25M-EXT-ROHS is a PDRO with an output frequency of 18.6 GHz and a minimum output level of 13 dBm. Housing size is 2.25" x 2.25" x 1.41" with SMA connectors. ROHS complaint.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Output Frequency - fo (GHz): | 18.6 |
| Output Power (dBm): | 13 to 15 dBm |
| Spurious: | -76 dBc Max |
| Harmonics: | -20 dBc Max |
| Reference Input Power: | 10 ± 3 dBc |
| Reference Frequency: | 0.025 GHz |
| VSWR: | 3.0:1 Min |
| DC Supply: | +12 ± 0.5 VDC, 500 mA Max |
| DC Power: | +12 ± 0.5 VDC, 500 mA Max |
| Lock Indicator: | TTL High for In-Lock TTL Low for Out-of-Lock |
| Connectors: | SMA Female |
| Size: | 2.25" x 2.25" x 1.41" |
| Finish: | Nickel Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -50 °C to 75 °C |
