PLDRO-1D645G-13DBM-INT-SFF Preliminary
Phase Locked Dielectric Resonator Oscillator (PLDRO)

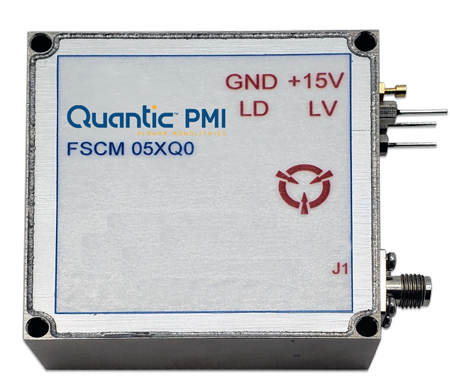

PMI Model PLDRO-1D645G-13DBM-INT-SFF is a Phase Locked Dielectric Resonator Oscillator (PLDRO) with an output frequency of 1.645 GHz and a minimum output level of 13 dBm. Package size is 2.25" x 2.25" x 0.62" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Output Frequency - fo (GHz): | 1.645 |
| Frequency Stability: | ±2 ppm Max Over Operating Temperature |
| Load VSWR: | 1.5:1 |
| Output Power (dBm): | 13 dBm Min |
| Spurious: | -80 dBc Max |
| Harmonics: | -20 dBc Max |
| Reference Frequency: | Internal |
| Warm Up Time: | 5 Min Max |
| Frequency Accuracy @ 25°C: | ±1 ppm Max |
| Output Level: | 13 dBm Min |
| Phase Noise @ 25°C: | -102 dBc/Hz Max @ 100 Hz -126 dBc/Hz Max @ 1 kHz -131 dBc/Hz Max @ 10 kHz -131 dBc/Hz Max @ 100 kHz -140 dBc/Hz Max @ 1 MHz |
| Mech Tuning: | None |
| Lock Detector: | TTL High - Lock |
| DC Current: | 450 mA Max steady, 850 mA Max surge |
| Supply Voltage: | +15 VDC ± 10% |
| Connectors: | RF: SMA Female Power: Through Cap |
| Size: | 2.25" x 2.25" x 0.62" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +70 °C |
| Non-Operating Temperature: | -50 °C to +80 °C |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
