PLN-25-812-10-LCA

Buy Now

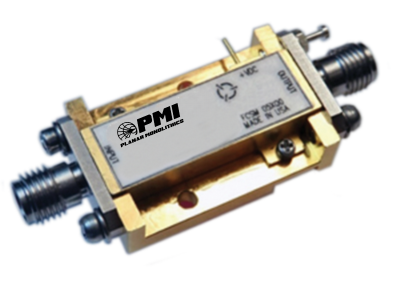

PMI Model No. PLN-25-812-10-LCA is a 8.0 to 12.0 GHz Low Noise Amplifier which provides 25 dB of gain while maintaining a gain flatness of ±1.0 dB typically over the operating frequency. The typical noise figure is 1.8 dB and offers a typical OP1dB of +10 dBm. The amplifier requires +12 VDC and the typical current draw is 75 mA. The unit is supplied with removable SMA female connectors in our standard PE2 housing.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 8 GHz
Frequency Max: 12 GHz
Gain: 25 dB Typ
Gain (Measured): 25 dB Typ - Measured 25.7dB
Gain Flatness (Measured): ±1.0 dB Typ - Measured +/-0.41dB
Gain Flatness: ±1.0 dB Typ
Noise Figure: 1.8 dB Typ
Noise Figure (Measured): 1.8 dB Typ - Measured 1.85dB
Frequency Range: 8.0 to 12.0 GHz
OP1dB: 10 dBm Typ - Measured >10dB
VSWR In/Out: 2.0:1 Typ - Measured 1.36:1
DC Voltage Supply: +12 VDC
DC Current Draw: 75 mA Typ - Measured 72mA
Connectors: SMA Female
Housing: PE2
Environmental Ratings:
Temperature: -54 ºC to +95 ºC Operating-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
