PLN/A-35-100M18G-P1dB24-120VAC Active

Portable Amplifier

PLN/A-35-100M18G-P1dB24-120VAC
Product Feature

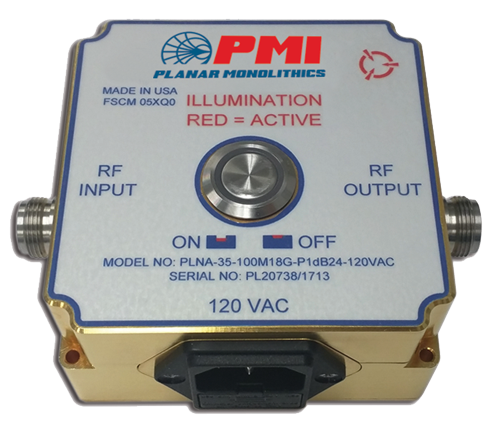

Quantic PMI Model PLN/A-35-100M18G-P1dB24-120VAC is a portable amplifier that operates over the 0.1 to 18 GHz frequency range that provides 35 dB minimum gain with a minimum OP1dB of 22 dBm. This amplifier features an illuminated push button ON/OFF switch in a small package measuring 3.5" x 3.5" x 1.75" with Type N female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 18
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Gain (dB): 35 dB Min
Gain Flatness (dB): ±2.5 dB Typ
Noise Figure (dB): 3.5 dB Typ
OP1dB (dBm): 25 dBm Typ,
22 dBm Min
VSWR In/Out: 2.0:1 Max
Maximum RF Input: 10 dBm Max
AC Voltage Supply: 120 VAC
DC Voltage Supply: N/A
On/Off Switch: Vandel Switch Illuminated
RF Connectors (In/Out): N-Type Female
AC Connector: 3 Pin IEC
Size: 3.5" x 3.5" x 1.75"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +55 ºC
