PLNA-25-6G12G-1-10DBM-SFF Preliminary
Low Noise Amplifier

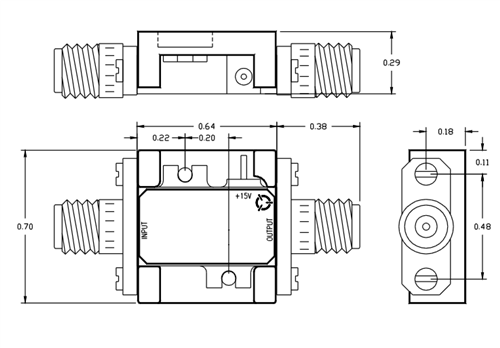

PMI Model PLNA-25-6G12G-1-10DBM-SFF is a 6 to 12 GHz low noise amplifier featuring 1 dB noise figure, 25 dB gain, and 10 dBm P1dB. Housing size is 0.69" x 0.70" x 0.29" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 6 to 12 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 12 |
| Gain (dB): | 25 dB Typ |
| Gain Flatness (dB): | ±1 dB Typ |
| Noise Figure (dB): | 1 dB Max |
| OP1dB (dBm): | 10 dB Min |
| Input Power: | 18 dBm Max |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage Supply (VDC): | +12 VDC |
| DC Current Draw: | 100 mA Max |
| Connectors: | SMA Female - removable |
| Size: | 0.69" x 0.70" x 0.29" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ⁰C to +85 ⁰C |
| Temperature (Non-Operating): | -65 ⁰C to +125 ⁰C |
