PLNA-30-10M20-292FF

Ultra-Low Noise Amplifier - Dual use component

Buy Now

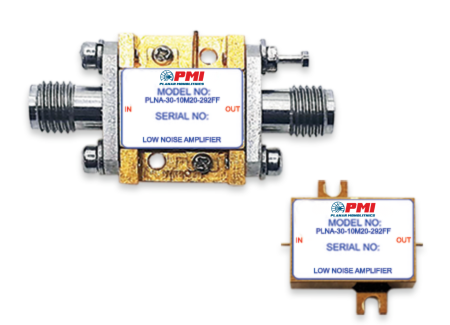

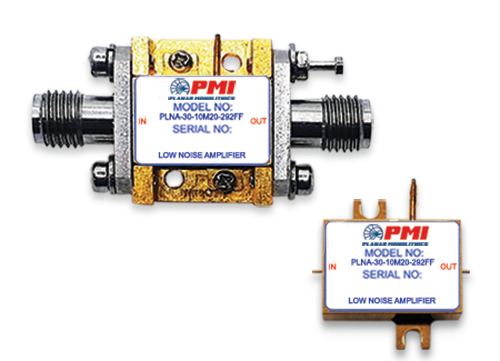

PMI Model Number PLNA-30-10M20-292FF is an Ultra-low Noise Amplifier with working frequency range of 10 MHz to 20 GHz that offers up to +28 dB minimum gain @ 20 GHz with a typical gain flatness of ±2.5 dB typical and Noise figure of 3 dB @ 0.5 GHz, 2.5 dB @ 18 GHz, and 3.3 @ 20 GHz.   The amplifier's housing size is 0.53" x 0.70" x 0.26" with 2.92mm connectors that can be used as a surface mount or connectorized component.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 10 MHz to 20.0 GHz
Frequency Min: 10 MHz
Frequency Max: 20.0 GHz
Gain: +26 dB Min (10 MHz to 18.0 GHz)
+28 dB Min (18.0 to 20.0 GHz)
Gain Flatness: ±2.0 dB Typ (10 MHz to 18.0 GHz)
±2.5 dB Typ (18.0 to 20.0 GHz)
Noise Figure: 3.0 dB Typ (20 MHz to 0.5 GHz)
2.5 dB Typ (0.5 to 18.0 GHz)
3.3 dB Typ (18.0 to 20.0 GHz)
VSWR In/Out: In: 2.0:1 Max (10 MHz to 18.0 GHz),
2.2:1 Typ (18.0 to 20.0 GHz)
Out: 2.1:1 Max (10 MHz to 18.0 GHz),
2.4:1 Typ (18.0 to 20.0 GHz)
DC Voltage Supply: +5 VDC
DC Current Draw: 120 mA Max
OP1dB: +14 dBm Typ (10 MHz to 18.0 GHz)
+13 dBm Typ (18.0 to 20.0 GHz)
OIP3: +25 dBm Typ (10 MHz to 18.0 GHz)
+23 dBm Typ (18.0 to 20.0 GHz)
PSAT: +15 dBm Typ (10 MHz to 18.0 GHz)
+14 dBm Typ (18.0 to 20.0 GHz)
Input Power: +20 dBm Max
Reverse Isolation: 36 dB Min (10 MHz to 18.0 GHz)
35 dB Min (18.0 to 20.0 GHz)
Connectors In/Out: 2.92mm (F) removable
Finish: Gold Plated
Size: 0.53" x 0.70" x 0.26"
DC Supply: +5 VDC @ 120 mA Max
Environmental Ratings:
Temperature: -40 °C to +85 °C (Operating)
-40 °C to +100 °C (Non-Operating)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
