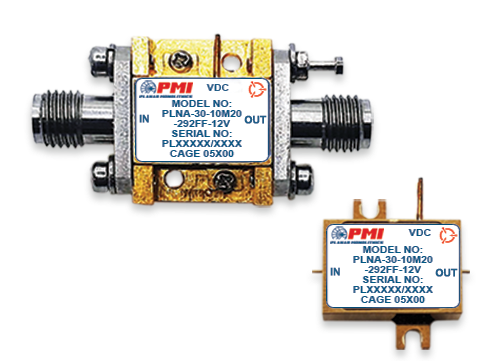

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 10 to 20 |
|---|
| Frequency Min (GHz): | 10 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Gain (dB): | 30 dB Typ,
26 dB Min |
|---|
| Gain Flatness (dB): | ±2.2 dB Max |
|---|
| Noise Figure (dB): | 5.5 dB Max (0.02 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
3.75 dB Max (18 to 20 GHz) |
|---|
| OP1dB (dBm): | 14 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz) |
|---|
| DC Voltage Supply: | +12 VDC |
|---|
| DC Current Draw: | 140 mA Max |
|---|
| OIP3: | 25 dBm Typ,
23 dBm Min |
|---|
| PSAT: | 15 dBm Min (0.01 to 18 GHz),
14 dBm Min (18 to 20 GHz) |
|---|
| VSWR (Input): | 2.0:1 Max (0.01 to 18 GHz),
2.4 Max (18 to 20 GHz) |
|---|
| VSWR (Output): | 2.2:1 Max (0.01 to 18 GHz),
2.5 Max (18 to 20 GHz) |
|---|
| Reverse Isolation: | 36 dB Min (0.01 to 18 GHz),
35 dB Min (18 to 20 GHz) |
|---|
| Second Harmonic: | 33 dBc Min @ -30 dBm Input Power,
19 dBc Min @ P1dB,
13 dBc Min @ PSAT |
|---|
| Connectors: | 2.92mm Female - removable |
|---|
| Size: | 0.7" x 0.53" x 0.26" |
|---|
| Finish: | Gold Plated |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -54 °C to +85 °C |
|---|
| Temperature (Storage): | -57 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND B. |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND B. |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND B. |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND B. |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND B. |
|---|
