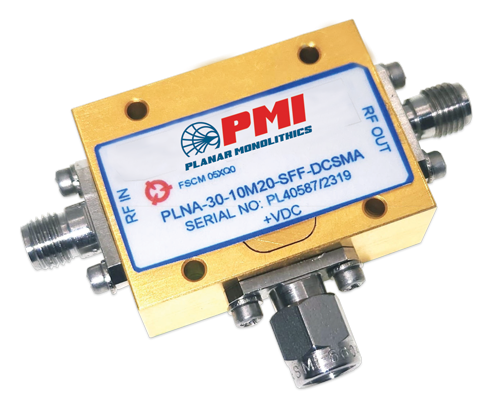

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.01 to 20 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Gain (dB): | 26 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz) |
|---|
| Gain Flatness: | ±2 dB Max (0.01 to 18 GHz) |
|---|
| Noise Figure (dB): | 3.5 dB Max (0.01 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
4 dB Max (18 to 20 GHz) |
|---|
| OP1dB (dBm): | 14 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz) |
|---|
| Psat (dBm): | 15 dBm Min (0.01 to 18 GHz),
14 dBm Min (18 to 20 GHz) |
|---|
| VSWR In/Out: | 2.0:1 Max (0.01 to 18 GHz),
2.2:1 Max (18 to 20 GHz) |
|---|
| DC Voltage (VDC): | +5 VDC |
|---|
| DC Current (mA): | 150 mA Max |
|---|
| Input Power: | 20 dBm Max |
|---|
| Reverse Isolation: | 36 dB Min (0.01 to 18 GHz),
35 dB Min (18 to 20 GHz) |
|---|
| OIP3: | +20 dBm Min (0.01 to 18 GHz)
+20 dBm Typ (18 to 20 GHz) |
|---|
| DC Supply: | +5 VDC @ 150 mA Max thru SMA male connector |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.37" x 1.00" x 0.50" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 °C to+ 85 °C (Operating)
-40 °C to +100 °C (Storage) |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND A |
|---|
