PLNA-30-10M6G-P1dB22-120VAC Active

Portable Amplifier

PLNA-30-10M6G-P1dB22-120VAC
  • PLNA-30-10M6G-P1dB22-120VAC
  • PLNA-30-10M6G-P1dB22-120VAC
  • PLNA-30-10M6G-P1dB22-120VAC

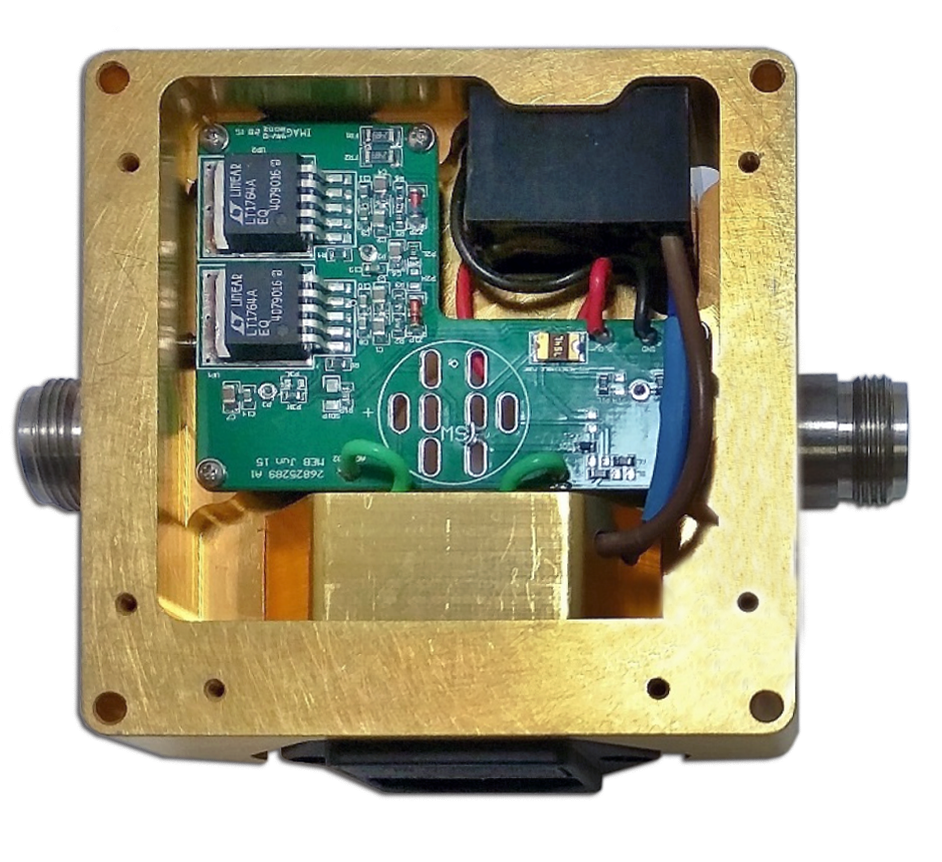

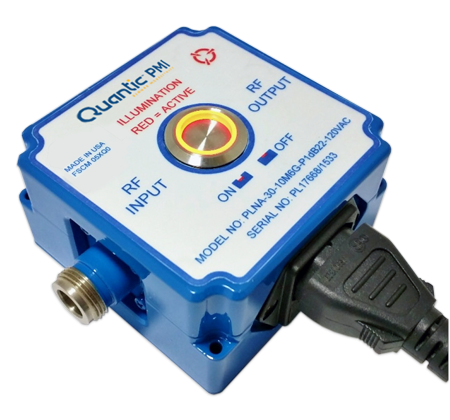

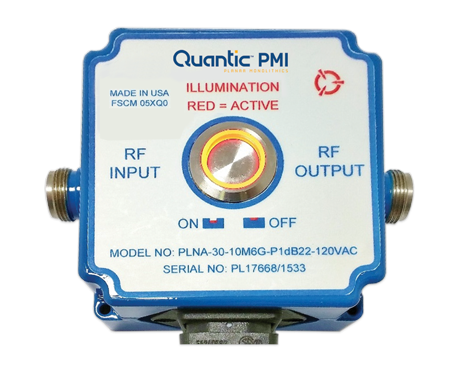

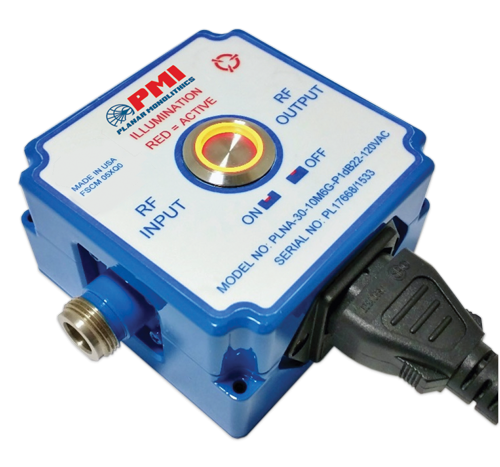

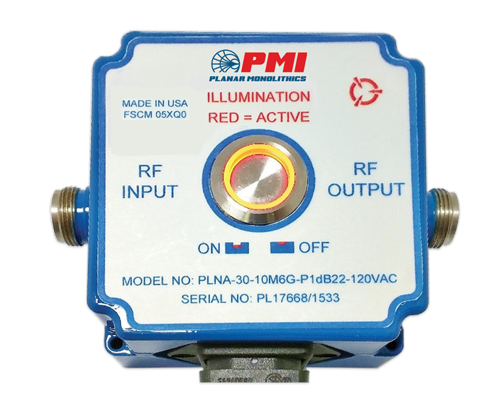

Quantic PMI Model PLNA-30-10M6G-P1dB22-120VAC is a portable amplifier that operates over the 0.01 to 6 GHz, frequency range with-90 a typical gain of 30 dB with an output P1dB of 22 dBm. This amplifier features an illuminated push button ON/OFF switch in a small package of 3.0" x 3.0" x 1.75" with Type N female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 6
Frequency Min (GHz): 0.01
Frequency Max (GHz): 6
Gain (dB): 30 dB Typ
Gain (Measured): 30 dB Typ - Measured 34.3 dB
Gain Flatness (dB): ±2 dB Max
Gain Flatness (dB) - Measured: ±2 dB Max - Measured ±1.35 dB
Noise Figure (dB): 4.5 dB Typ, 5.25 dB Max
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Typ - Measured 1.99:1
Maximum RF Input: 10 dBm CW
AC Voltage Supply: 110 VAC
DC Voltage Supply: N/A
On/Off Switch: Vandel Switch Illuminated
RF Connectors (In/Out): Type N female
AC Connector: 3 Pin IEC
Size: 3.0" x 3.0" x 1.75"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +55 ºC
