PLO-16540M-13DBM-EXT-SFF Preliminary
Phase Locked Oscillator (PLO)

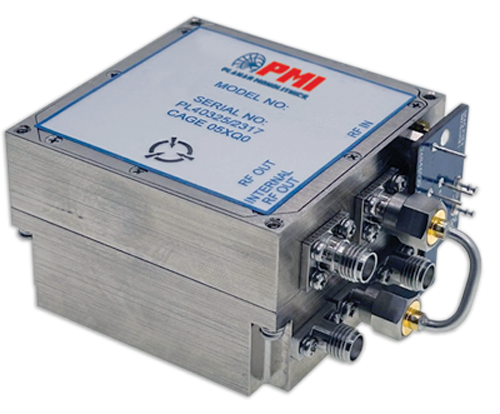

PMI Model PLO-16540M-13DBM-EXT-SFF is an externally referenced 16.54 GHz oscillator featuring 13 dBm output power. with a reference frequency of 10 MHz, a load VSWR of 1.5:1, an output spurious of -65 dBc, an output harmonic of -20 dBc, and a reference input power of 0 dBm ±3 dB. This model has SMA female connectors and measures 2.25" x 2.25" x 1.41".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Output Frequency - fo (GHz): | 16.54 |
| Frequency Stability: | Same as external reference |
| Load VSWR: | 1.5:1 Max |
| Output Power (dBm): | 13 dBm Min |
| Spurious: | -65 dBc Max |
| Phase Noise: | -60 dBc/Hz Max @ 100 Hz, -90 dBc/Hz Max @ 1 kHz, -105 dBc/Hz Max @ 10 kHz, -110 dBc/Hz Max @ 100 kHz, -125 dBc/Hz Max @ 1 MHz |
| Harmonics: | -20 dBc Max |
| Phase Lock Alarm: | TTL High = Lock |
| External Reference: | 10 MHz |
| Input Level: | 0 dBm, ±3 dB |
| DC Supply: | +15 VDC |
| DC Current: | 500 mA Typ |
| RF Connector: | SMA Female |
| Size: | 2.25" x 2.25" x 1.41" |
| Finish: | Nickel Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 ˚C to +60 ˚C |
| Non-Operating Temperature: | -54 ˚C to +80 ˚C |
