PLO-185M-10M-EXT-SFF Preliminary
Phase Locked Oscillator (PLO)
PMI Model PLO-185M-10M-EXT-SFF is a 0.185 GHz phase locked oscillator that requires a 10 MHz external reference and features 13 dBm output power while maintaining low phase noise. Housing Size is 2.25" x 2.25" x 0.62" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Output Frequency - fo (GHz): | 0.185 |
| Frequency Stability: | Same as reference |
| Load VSWR: | 1.5:1 Max |
| Spurious: | -80 dBc Max (Fo ± 100 MHz) -70 dBc Max (Out of band) |
| Phase Noise: | -85 dBc/Hz Max @ 10 Hz -96 dBc/Hz Max @ 100 Hz -126 dBc/Hz Max @ 1 kHz -144 dBc/Hz Max @ 3 MHz -146 dBc/Hz Max @ 6 MHz |
| Harmonics: | -30 dBc Max |
| External Reference: | 10 MHz (Sine wave) |
| Output Level: | 13 dBm Min |
| Lock Detector: | TTL High = Lock |
| Input Level: | -3 to 3 dBm |
| Stability: | ±2 dB Max |
| DC Supply: | +12 VDC @ 300 mA Typ |
| Reference Phase Noise: | -115 dBc/Hz Max @ 10 Hz -135 dBc/Hz Max @ 100 Hz -155 dBc/Hz Max @ 1 kHz -160 dBc/Hz Max @ 10 kHz |
| RF Connector: | SMA Female |

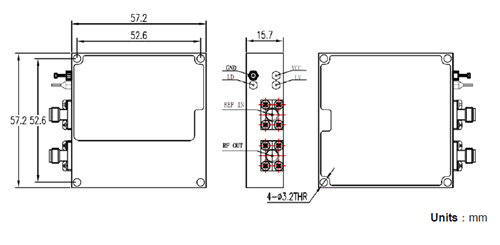

| Size: | 2.25" x 2.25" x 0.62" 57.2 mm x 57.2 mm x 17.7 mm |
| Finish: | Nickel Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ℃ to +70 ℃ |
| Non-Operating Temperature: | -50 ℃ to +80 ℃ |
