PLOM-1161.216-1225.728-CD-1

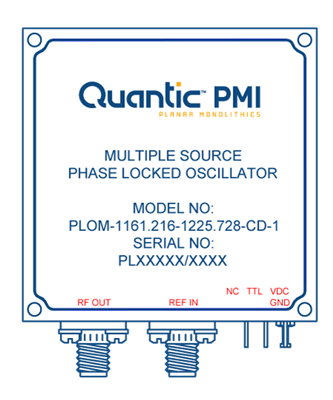

PMI Model No. PLOM-1161.216-1225.728-CD-1 is a Multiple Source Phase Locked Oscillator with output frequencies of 1161.216 MHz and 1225.728 MHz. This model provides minimum output power of -10 dBm with all spurs held to -60 dBc and harmonics held to 60 dBc. The 2.25" x 2.25" x 0.62" housing is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Reference Frequency: 64.512 MHz
Reference Input Power: 7± 2 dBm
Reference Stability (Aging): 1x10e-6 per year Max
Reference Phase Noise: -115 dBc/Hz @ 100 Hz Max, -145 dBc/Hz @ 1 kHz Max, -155 dBc/Hz @ 10 kHz Max, -158 dBc/Hz @ 100 kHz Max
Reference Temp. Stabilty: 1 ppm Max
Reference Spurious Level: -100 dBc Max
RF Out Center Frequency: 1161.216/1225.728 MHz
Output Power: -10 dBm Min
Spurious: -60 dBc Max
Sub-Harmonics: -60 dBc Max
Phase Noise: Reference Degradation 20 Log N + 3 dB, dBc/Hz N = 19
Temperature Stability: 1 ppm Max
Power Supply: +5.5 ± 0.5 V @ 500 mA Max
Connectors: RF: SMA Female Removable, DC: Gold Plated Solder In Feedthrus, Control: Solder in Feedthrus
Size: 2.25" x 2.25" x 0.62" Max, 57.15 mm x 57.15 mm x 15.75 mm Max
Finish: Nickel Plated
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
