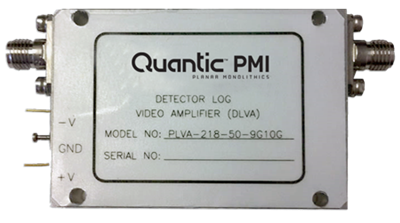

PLVA-218-50

PMI Model No. PLVA-218-50 is a 50dB Detector Log Video Amplifier designed to operate over the 2.0 to 18.0GHz frequency range. It employs planar diode detectors and integrated video circuitry for high speed performance and outstanding reliability. It is of superior construction using state-of-the-art MIC/MMIC technology.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
TSS: -42 dBm min.
Size: 2.20" x 1.50" x 0.40"
Log Slope: 50 mV/dB - Measured 50.4 mV/dB
Log Range: -40 dBm to +0 dBm min. - Measured -40 to 0 dBm
Log Linearity: ±0.75 dB max. (-40 dBm to 0 dBm) - Measured ±0.75 dB
Rise Time: 20 ns max. (At TSS to +10 dB) - Measured 14.3 ns
Power Supply: +15 V @ 95 mA max. - Measured 39 mA -15 V @ 60 mA max. - Measured 40 mA
Finish: Gold Plated
Frequency Flatness: ±1.0 dB max. - Measured ±0.5 dB
VSWR: 2.0:1 max. - Measured 2.58:1
Video Load: 100 Ohms
TSS (Measured): -42 dBm min. - Measured -42 dBm
Environmental Ratings:
Operating Temperature: -54ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
