PMC-15G16G-SFF Preliminary
Monopulse Comparator
PMI Model PMC-15G16G-SFF is a 15 to 16 GHz monopulse comparator featuring 18 dB isolation, ±0.8 dB amplitude balance, and ±10° phase balance. Housing size is 3.118" x3.118" x 0.433" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 15 to 16 |
| Frequency Min (GHz): | 15 |
| Frequency Max (GHz): | 16 |
| Phase Balance: | ±10° Max |
| Isolation (dB): | 18 dB Min |
| Amplitude Balance: | ±0.8 dB Max |
| VSWR: | 1.70:1 Max |
| Power Handling: | 50 W CW, 1 kW Peak |
| Connectors: | SMA Female |
| Finish: | Painted Blue |

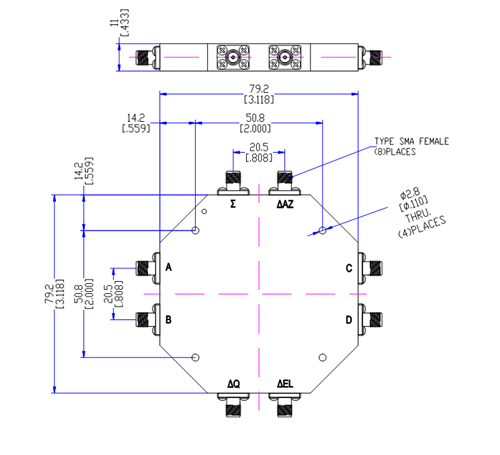

| Size: | 3.118" x3.118" x 0.433" |
| Weight: | 90 g Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ℃ to +85 ℃ |
| Humidity: | Up to 95%, Non-Condensing |
