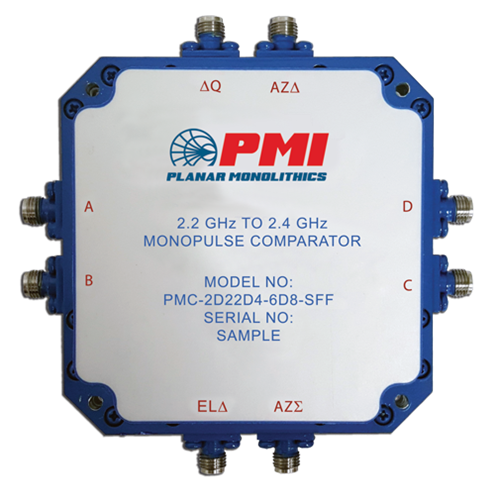

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2.2 to 2.4 |
|---|
| Frequency Min (GHz): | 2.2 |
|---|
| Frequency Max (GHz): | 2.4 |
|---|
| Phase Balance: | ±5° Max |
|---|
| Insertion Loss (dB): | 6.8 dB Max |
|---|
| Insertion Loss Without 6 dB Nominal Split: | 0.8 dB Max |
|---|
| Isolation (dB): | 20 dB Min |
|---|
| Amplitude Balance: | ±0.5 dB Max |
|---|
| VSWR: | 1.3:1 Typ
1.5:1 Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Power Handling: | Average: 10 W Max
Peak: 0.1 kW Max |
|---|
| Connectors: | SMA Female |
|---|
| Finish: | Painted Blue |
|---|
| Size: | 3.54” x 3.54” x 0.43” |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Non-Operating) |
|---|
| Humidity: | Up to 90%, Non-Condensing (Operating) |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
