PMC-8G12G-SFF Preliminary

Monopulse Comparator

PMC-8G12G-SFF

PMI Model PMC-8G12G-SFF is a monopulse comparator operating within the 8 to 12 GHz frequency range that features 18 dB isolation, and 1 kW peak power handling. Housing size is 3.484" x 3.484" x 0.433" and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 12
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Phase Balance: ±10° Max
Isolation (dB): 18 dB Min
Amplitude Balance: ±1 dB Max
VSWR: 1.6:1 Max
Power Handling: 50 W CW Max
1 kW Peak Max
Connectors: SMA Female
Finish: Painted Blue

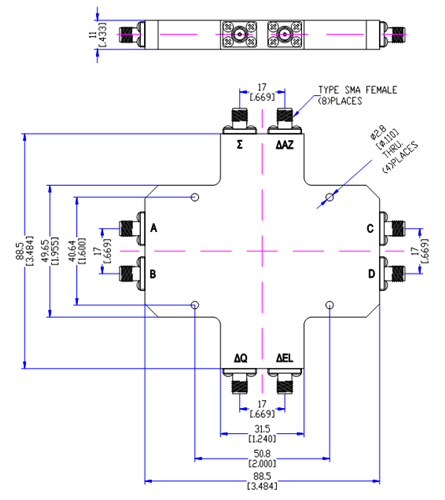

Size: 3.484" x 3.484" x 0.433"
Weight: 90 g Typ
Environmental Ratings:
Temperature: -55 ℃ to +85 ℃
Humidity: Up to 95%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
